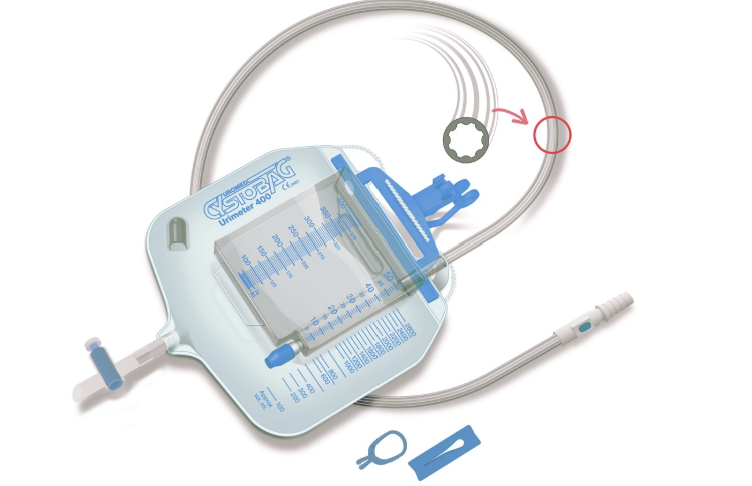

UROMED Sterile Closed Urine Measurement System
This UROMED sterile closed urine measurement system is designed for the collection of urine drained through a catheter and for accurate monitoring of urinary output. With a 2600 ml collector bag and 150 cm tube length, it is suitable for clinical environments where reliable urine drainage and output measurement are required.
The system includes a 400 ml measurement chamber with clear graduations, a drip chamber with non-return valve, needle-free urine specimen port, secure clamps, and a T-TAP outlet for hygienic one-handed emptying.
Common Applications
This closed urine measurement system is commonly used for catheter-based urine collection and urinary output monitoring in clinical care settings.
Urine Collection
- Collection of urine drained through a catheter
- Closed sterile drainage system
- 2600 ml collector bag capacity
Urinary Output Monitoring
- Designed for monitoring urinary output
- 400 ml measurement chamber
- Fine and rough graduation markings for accurate readings
Product Features
Secure Tube Connection
Step connector supports reliable connection between the catheter and urine measurement system.
Needle-Free Sampling Port
Needle-free urine specimen spot supports hygienic urine sample collection when required.
Profiled Tube with Clamps
Includes profiled tubing, tubing clamp, and bed-sheet clamp for secure positioning and practical handling.
Drip Chamber with Non-Return Valve
The drip chamber includes a non-return valve to support safe and reliable urine drainage.
Clear Measurement Chamber
The 400 ml measurement chamber is precisely graduated and divided into fine 1 ml and rough 5 ml measurement units.
Air-Vent System
Air vents on the measurement chamber and collector bag support proper drainage performance.
One-Handed Emptying
Handle and T-TAP outlet are designed for one-handed use while helping reduce contamination risk.
Fast Emptying
The collector bag includes a tap with wide lumen for quick and efficient emptying.
Product Specifications
| Product Type | Sterile closed urine measurement system |
|---|---|
| Application | Collection of catheter-drained urine and urinary output monitoring |
| Collector Bag Volume | 2600 ml |
| Measurement Chamber Volume | 400 ml |
| Tube Length | 150 cm |
| Measurement Units | Fine 1 ml and rough 5 ml graduations |
| Outlet | T-TAP outlet with wide lumen |
Closed System for Urinary Output Monitoring
The UROMED sterile closed urine measurement system provides a reliable solution for catheter-based urine collection and urinary output monitoring. Its 2600 ml collector bag, 400 ml graduated measurement chamber, non-return valve, needle-free sampling port, secure clamps, and one-handed T-TAP outlet support accurate, hygienic, and efficient urine drainage management in clinical care settings.
