BE-Well Cross Step WE-100 / Recumbent Bike WE-110
The BE-Well series is designed for safe and effective aerobic exercise for elderly users, rehabilitation patients, and wheelchair users. The range includes the Cross Step WE-100 for full-body coordinated exercise and the Recumbent Bike WE-110 for comfortable lower-limb aerobic training.
Both models feature a compact, transfer-friendly design with a swiveling seat, wheelchair-compatible configuration, pulse monitoring, multiple exercise programs, and safety functions to support controlled training in rehabilitation and wellness environments.
Available Models

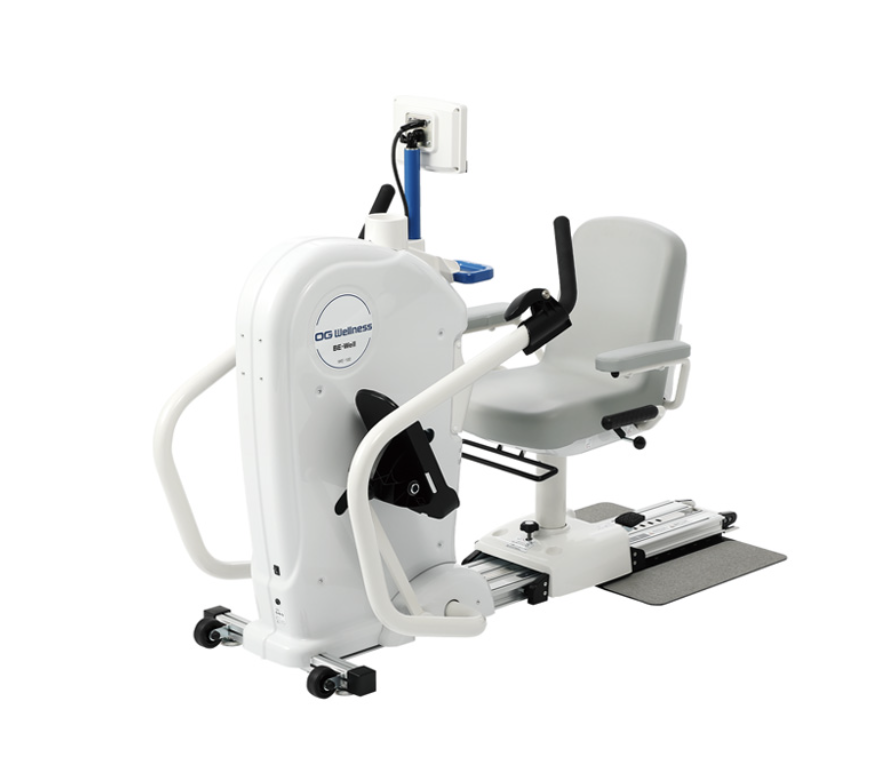

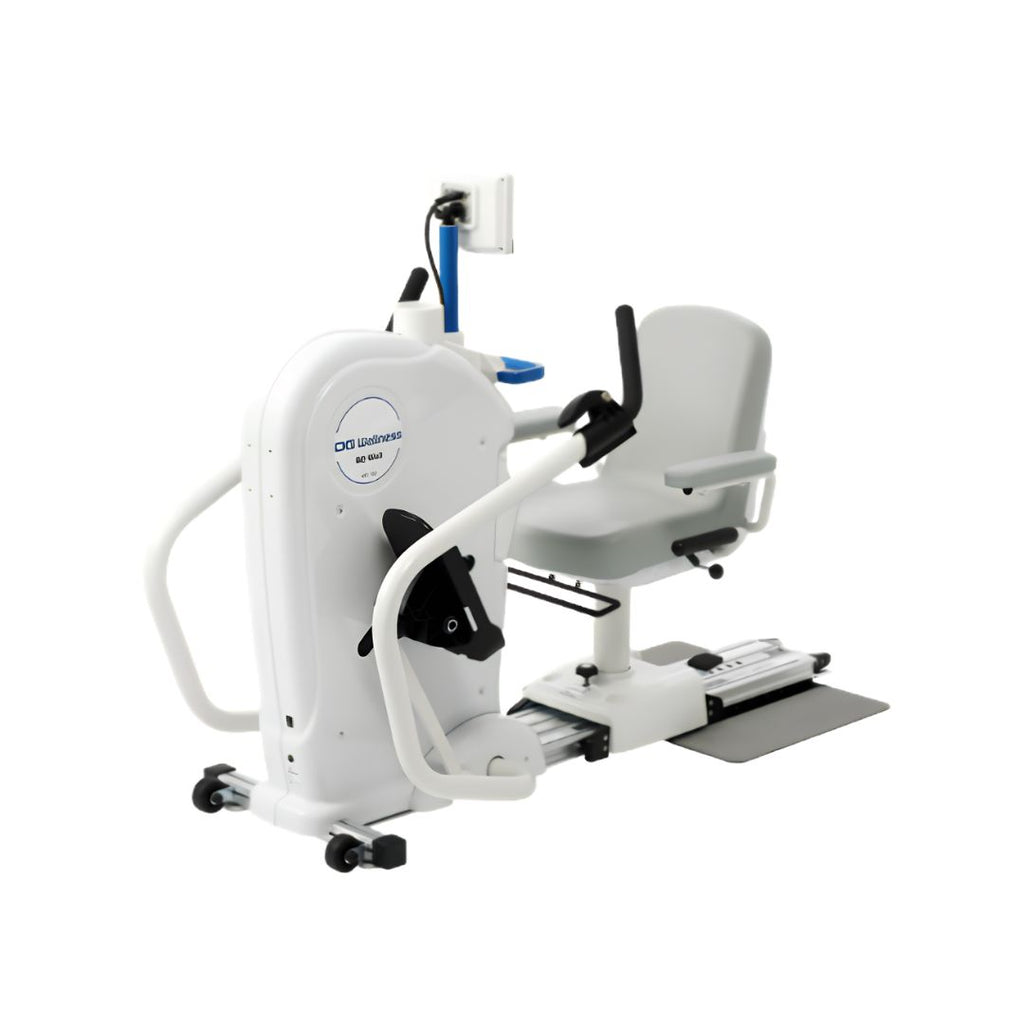

Cross Step WE-100
Full-body aerobic and strength training machine with interlocked handle levers and foot pedals, suitable for upper and lower limb coordination exercises.

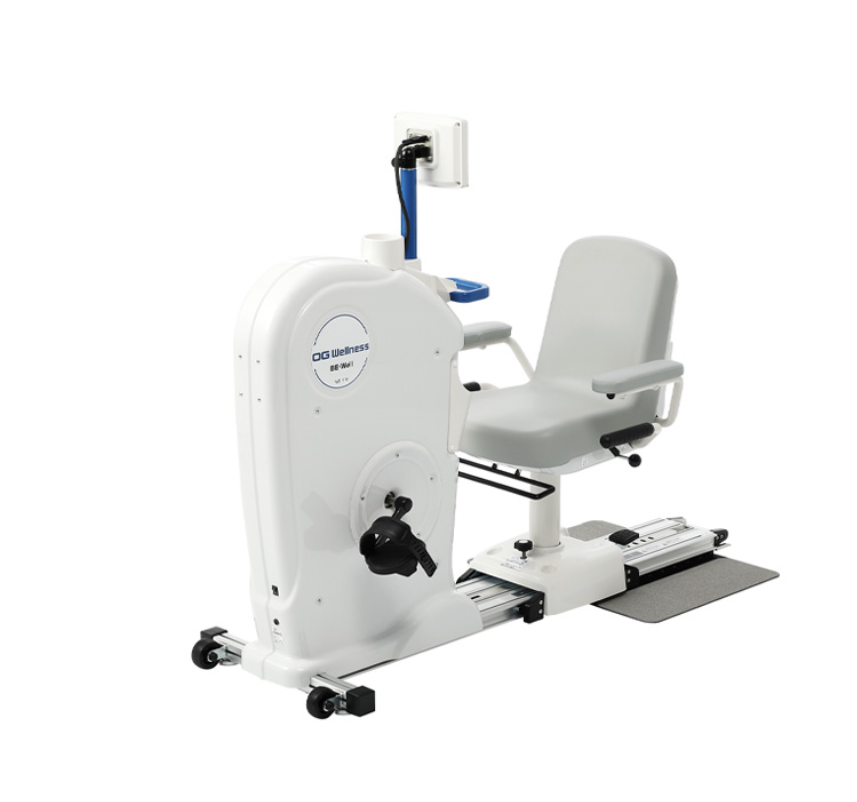

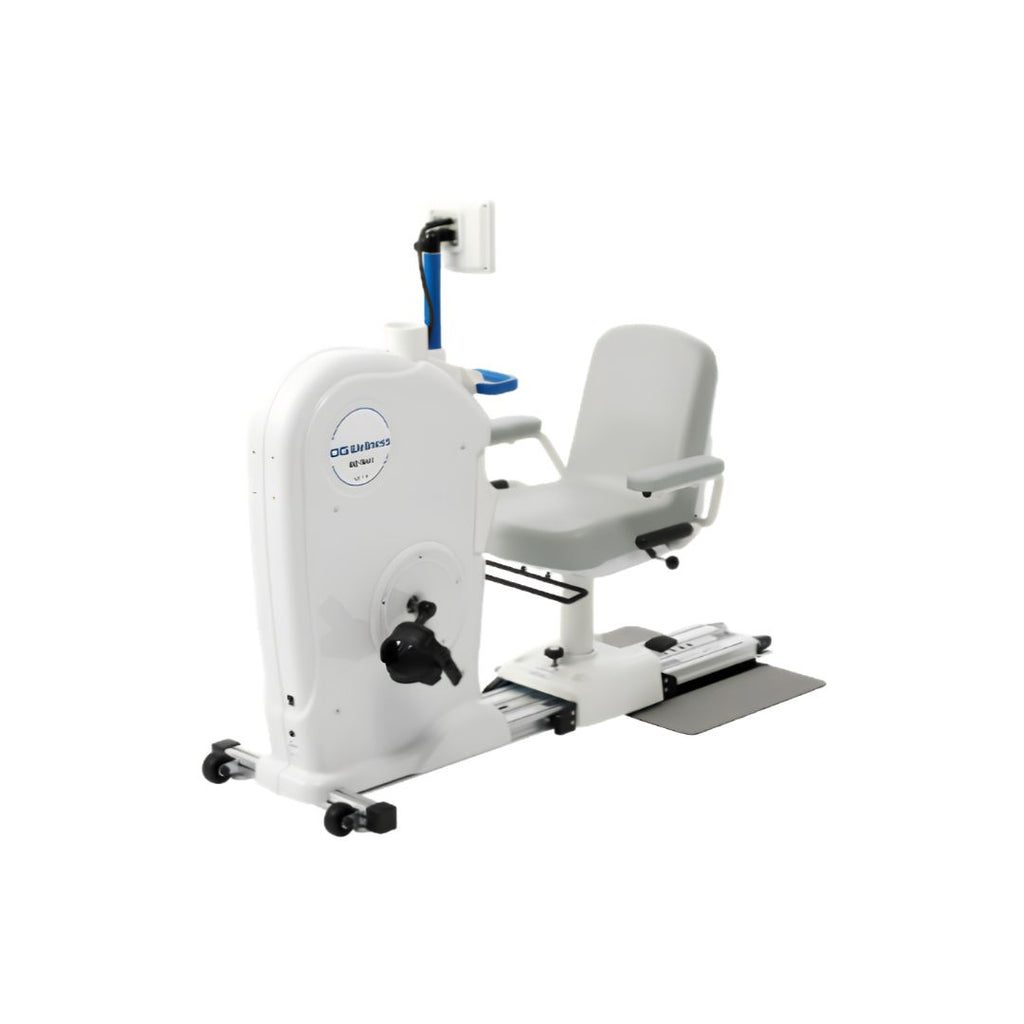

Recumbent Bike WE-110
Lower-limb aerobic exercise machine with a stable backrest and comfortable seated posture, designed to reduce strain during training.
Cross Step WE-100 Specifications
| Power Supply Type | 100 to 240VAC, 50/60 Hz |
|---|---|
| Power Input | 36 VA |
| External Dimensions | 660(W) × 1,500(D) × 1,170(H) mm |
| Weight | 105 kg |
| Compatible Heights | Approx. 135 to 195 cm |
| Compatible Weights | Up to 135 kg |
| Main Materials | Case: ABS, PMMA / Frame: iron, aluminum / Ear sensor: ASA / Pedals: POM / Seat: synthetic leather |
Cross Step WE-100 Features / Performance
| Seat Position Adjustment Range | 0 to 390 mm, 14 steps at 30 mm intervals |
|---|---|
| Seat Swivel Range | 5 positions: front, 45° left, 90° left, 45° right, 90° right |
| Handle Lever Length Adjustment Range | 0 to 390 mm, continuous adjustment |
| Display Functions | Age, pulse rate upper limit, target pulse rate, number of steps, exercise time, calories burned, resistance level, exercise intensity in watts, and METs |
| Pulse Sensor | Earlobe photoplethysmography / PPG sensor |
| Exercise Programs | Fitness test, manual, constant pulse, constant resistance, and constant wattage |
| Pulse Rate Upper Limit Alarm | A continuous beep is emitted and the exercise program is terminated. |
| Audible Notifications | Pitch sound at 40 bpm, 50 bpm, 60 bpm, pulse upper limit alarm, 3-second countdown alarm, exercise start sound, and exercise end sound |
| Seat Pull-Out Prevention | Release pedal and stopper mounted on the rails |
Cross Step WE-100 Standard Accessories
| Pulse Sensor | EM200-002 | 1 piece |
|---|---|---|
| AC Adaptor | WE100-012 | 1 piece |
| Wheelchair Fastening Belt | WE100-011 | 1 piece |
| Pedal Belt | WE100-003 | 1 set, 2 pieces |
| Seat Belt | WE100-002 | 1 piece |
| Pulse Sensor Hook | — | 1 piece |
Recumbent Bike WE-110 Specifications
| Power Supply Type | 100 to 240VAC, 50/60 Hz |
|---|---|
| Power Input | 36 VA |
| External Dimensions | 645(W) × 1,500(D) × 1,170(H) mm |
| Weight | 80 kg |
| Compatible Heights | Approx. 135 to 195 cm |
| Compatible Weights | Up to 135 kg |
| Main Materials | Case: ABS, PMMA / Frame: iron, aluminum / Ear sensor: ASA / Pedals: polypropylene / Seat: synthetic leather |
Recumbent Bike WE-110 Features / Performance
| Seat Position Adjustment Range | 0 to 390 mm, 14 steps at 30 mm intervals |
|---|---|
| Seat Swivel Range | 5 positions: front, 45° left, 90° left, 45° right, 90° right |
| Display Functions | Age, pulse rate upper limit, target pulse rate, speed, exercise time, calories burned, resistance level, exercise intensity in watts, and METs |
| Pulse Sensor | Earlobe photoplethysmography / PPG sensor |
| Exercise Programs | Fitness test, manual, constant pulse, constant resistance, and constant wattage |
| Pulse Rate Upper Limit Alarm | A continuous beep is emitted and the exercise program is terminated. |
| Audible Notifications | Pitch sound at 40 bpm, 50 bpm, 60 bpm, pulse upper limit alarm, 3-second countdown alarm, exercise start sound, and exercise end sound |
| Seat Pull-Out Prevention | Release pedal and stopper mounted on the rails |
Recumbent Bike WE-110 Standard Accessories
| Pulse Sensor | EM200-002 | 1 piece |
|---|---|---|
| AC Adaptor | WE100-012 | 1 piece |
| Wheelchair Fastening Belt | WE100-011 | 1 piece |
| Seat Belt | WE100-002 | 1 piece |
| Pulse Sensor Hook | — | 1 piece |
Aerobic Exercise for Elderly Users and Wheelchair Users
The BE-Well Cross Step and Recumbent Bike models are aerobic exercise machines designed with improved safety and accessibility. Their backrest-supported structure reduces the need to straddle the equipment, while the removable seat allows wheelchair users to exercise without transferring onto the seat.
Cross Step WE-100
The WE-100 provides full-body aerobic exercise and strength training. The handle levers and foot pedals are interlocked, supporting upper and lower limb coordination exercise.
- Supports full-body movement and leg strength improvement.
- Can be used for upper-limb-only or lower-limb-only exercise.
- Optional leg stabilizers and holding mitts can support users with partial paralysis.
- Designed for users from approx. 135 cm in height.
Recumbent Bike WE-110
The WE-110 supports lower-limb aerobic exercise in a stable and comfortable seated posture. The backrest helps reduce joint stress and supports longer exercise sessions with less discomfort.
- Comfortable lower-limb aerobic exercise with reduced strain.
- Pedal movement is similar to an elliptical trainer for effective lower-limb strengthening.
- Pedal belts or optional rehabilitation pedals can help secure the legs during exercise.
Two-Way Use: Seat or Wheelchair
The seat can be removed to allow wheelchair users to exercise directly from their wheelchair. This is especially helpful for users with trunk stabilization issues or difficulty transferring onto the equipment seat.
Step 1: Remove the Seat
Unlock and remove the seat from the rail system.
Step 2: Secure the Wheelchair
Roll the wheelchair onto the rails and secure it with the wheelchair fastening belt.
Step 3: Start Exercising
The wheelchair fastening belt secures the base frame to the wheelchair frame, while both wheels sit on the base plate for stability.
* Compatible with wheelchairs up to 600 mm wheel width.
* Wheelchairs with rotating footrests can be used normally. Wheelchairs with flip-up footrests require users to be at least 160 cm tall.
Safe Transfer Design
Walk-Through and Swiveling Seat Design
The design reduces the need to straddle the equipment. The swiveling seat and 48 cm seat height support easier transfers, especially for users who have difficulty moving onto exercise equipment.
Locking Function for Safe Transfer
The handle levers, seat swivel, and sliding movement can be locked to help support safer transfer and setup.
Compact Design for a Wide Range of Users
BE-Well is designed for users from approximately 135 to 195 cm in height. The pedals are positioned within easy reach, helping smaller users exercise while maintaining a comfortable posture. The panel is also positioned for easy viewing during operation.
Safe and Effective Exercise Programs
BE-Well classifies the user’s fitness level into one of five levels. Based on this classification, one of four exercise programs can be selected to match the user’s condition and training goals.
Touch Panel Program Selection
- Select “Fitness Test” and enter the user’s information.
- Start a 10-minute fitness test.
- Based on the test results, select Constant Pulse, Constant Watt, Constant Resistance, or Quick Training.
After setting the target pulse rate, pedal resistance level, and other conditions, the user can begin training.
Pulse Sensor Safety Support
The user wears a pulse sensor to measure pulse rate. If the pulse rate exceeds the upper limit, the exercise program is stopped to support safer training.
Additional Accessories
Pedal Belt
WE100-003
1 set, 2 pieces
* WE-100 model only.
Seat Belt
WE100-002
1 piece
* Same as the one used in WE-100 / WE-110.
Pulse Sensor
EM200-002
1 piece
* Same as the one used in WE-100 / WE-110.
AC Adaptor
WE100-012
1 piece
* Same as the one used in WE-100 / WE-110.
Wheelchair Fastening Belt
WE100-011
1 piece
* Same as the one used in WE-100 / WE-110.
Pedal Belts
WE110-002
1 set, 2 pieces
* WE-110 model only.
Optional Accessories
Leg Stabilizer
WE100-001
1 bag, 1 piece
* WE-100 model only.
Rehabilitation Pedals
WE110-001
1 set, 2 pieces
* WE-110 model only.
Holding Mitt
WE100-010
1 piece
* WE-100 model only.
Cane Holder
WE100-013
1 piece
* Same as the one used in WE-100 / WE-110.
Wet Wipes Holder
WE100-007
1 piece
* Same as the one used in WE-100 / WE-110.
Made in Japan
