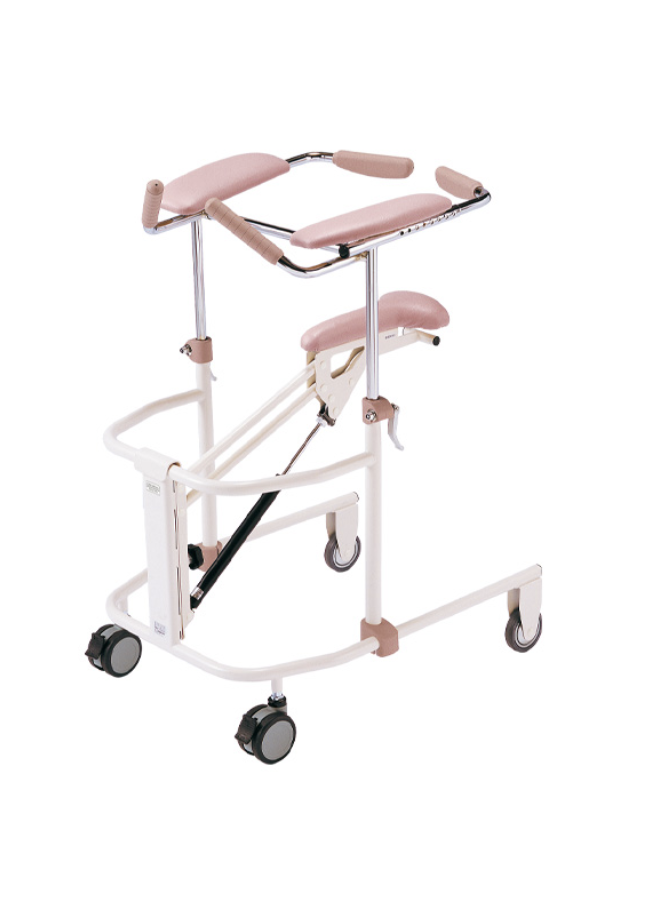

Walking Frame GB-510
The Walking Frame GB-510 is designed to support safer and easier standing transfers. Its adjustable saddle height and gas spring lifting mechanism allow caregivers to assist users with less physical effort while improving comfort and stability during use.
The frame includes adjustable armrests, wide safety casters, and optional accessories to support user comfort and caregiver convenience.
Product Specifications
| Product Name | Walking Frame GB-510 |
|---|---|
| External Dimensions | Approx. 630 × 800 × 890–1210(H) mm |
| Product Weight | Approx. 20 kg |
| Seat Lifting Method | Gas spring mechanism |
| Seat Height Adjustment Range | Approx. 370–780 mm, freely adjustable. May vary slightly depending on cushion thickness. |
| Saddle Load Capacity | 880 N / 90 kgf, vertically downward |
| Armrest Height Adjustment Range | Approx. 830–1150 mm, freely adjustable. May vary slightly depending on cushion thickness. |
| Armrest Load Capacity | 440 N / 45 kgf per armrest, vertically downward |
Key Features

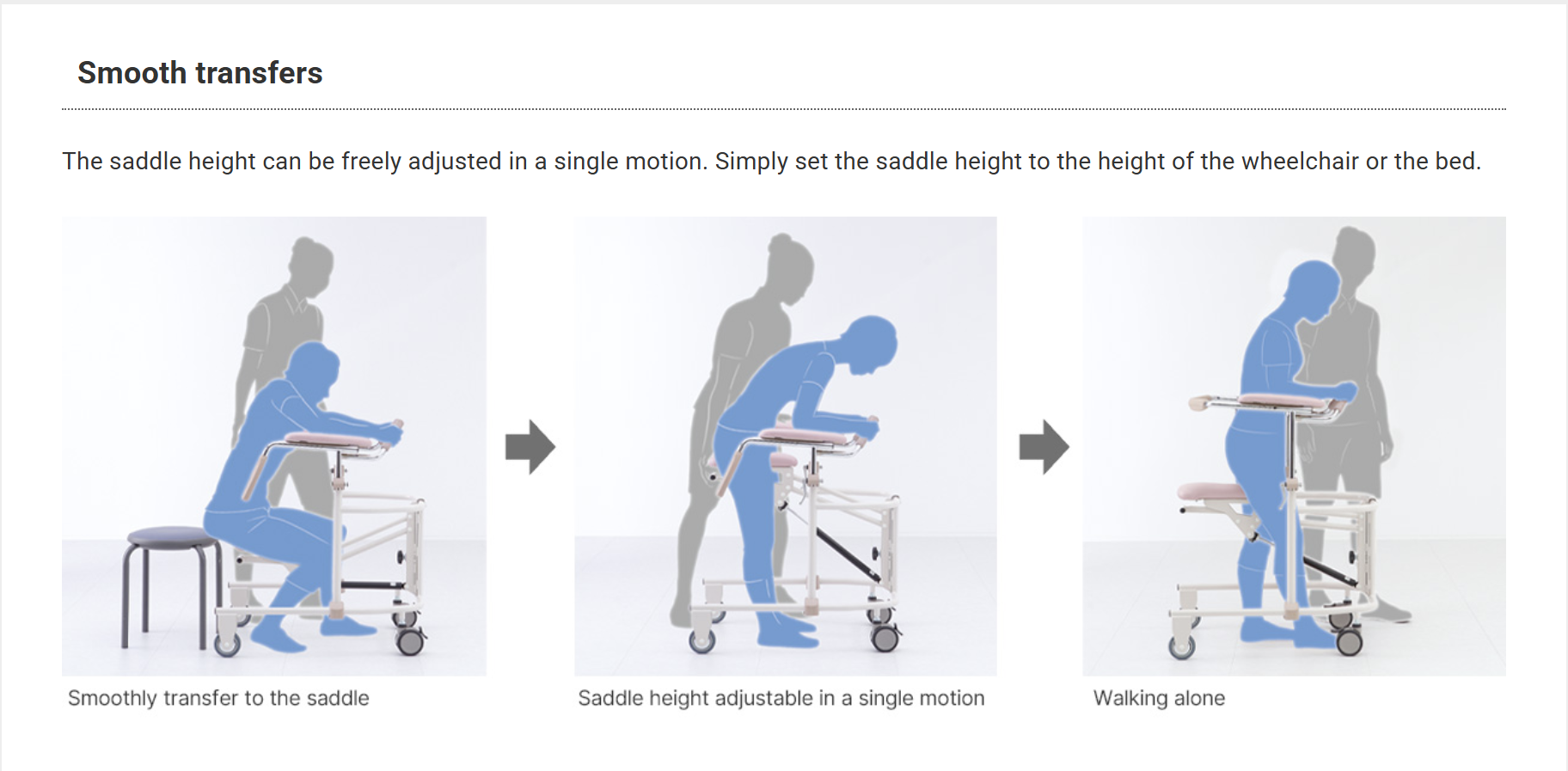

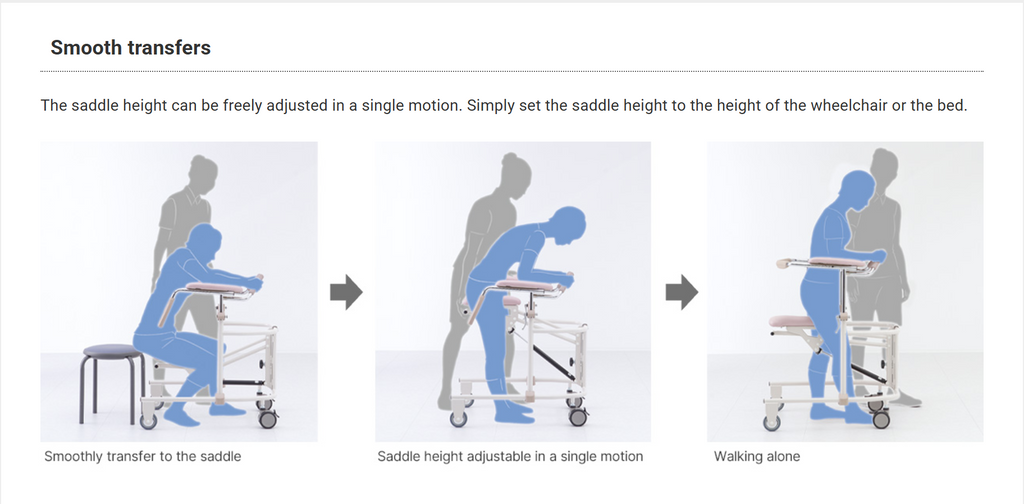

Adjustable Saddle Height for Easier Transfers
The adjustable saddle height helps support standing transfers and allows the walking frame to be adapted to different users and care situations.
One-Step Saddle Height Adjustment
The gas spring lifting mechanism allows the saddle height to be adjusted smoothly, helping caregivers support users when standing up without requiring excessive physical strength.
Quick-Fixing Lever
The armrest height can be adjusted easily using the quick-fixing lever, allowing the frame to be adapted to the user’s preferred support height.
Wide Casters for Safer Movement
The wide casters help prevent the wheels from getting stuck in elevator gaps or uneven flooring, supporting safer and smoother movement during use.
Optional Accessories
Seat Cover GB510-001
The optional seat cover provides additional cushioning for improved comfort during use.
| Cushion Dimensions | Approx. 190 × 350 × 20(H) mm |
|---|---|
| Weight | Approx. 200 g |
Made in Japan
