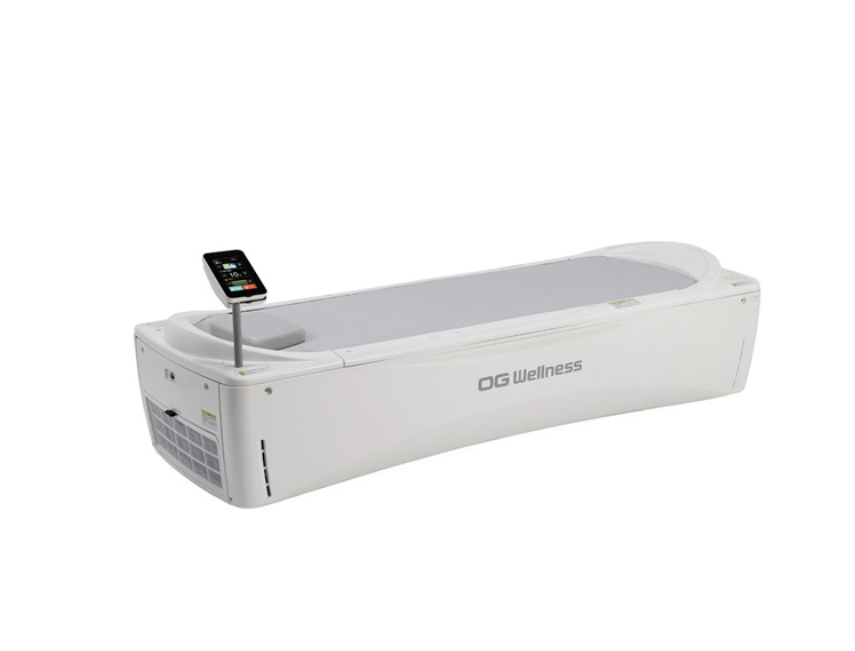

QUATTROMANO HS-30
The QUATTROMANO HS-30 is a water bed massager designed to provide custom-made massage programs using advanced water-stream control. Its Quattro Motion Control mechanism precisely controls four nozzles to deliver treatment patterns that can be adjusted according to patient body type, treatment area, and comfort preference.
The system offers over 200 treatment programs, multiple massage patterns, adjustable intensity, preheating temperature control, and design features that support safer transfers and patient comfort.
Product Videos
Model
| HS-30SLE | Single phase AC 200 to 240V |
|---|
Product Specifications
| Product Name | Water Bed Massager HS-30 |
|---|---|
| Protection Classification | Class I / Permanent fixture / B form mounting component |
| Rated Power Supply | Single phase 200V, 50/60 Hz |
| Power Input | 5.3 kVA |
| Rated Current | 30 A |
| External Dimensions | Approx. 820 × 2330 × 840(H) mm |
| Weight | Approx. 220 kg / approx. 450 kg when filled with water |
| Intensity | 5 steps, 1–5 |
| Preheating Temperature | 25–40 °C |
| Usage Conditions | Maximum weight: 135 kg, ambient temperature: 10–28 °C |
| Additional Features | Quattro motion control mechanism, preheating timer, automatic purge mechanism |
Standard Accessories
| Pillow | HS30-001 | 1 piece |
|---|---|---|
| Ankle Weight | HS30-002 | 1 piece |
| Sheet | HS30-005 | 2 pieces |
| Long Handrail | HS30-003 | 1 piece |
| Short Handrail | HS30-004 | 2 pieces |
Custom-Made Massage Concept
The HS-30 is designed around the concept of “custom-made massage,” allowing finely adjusted treatment patterns for different patient conditions, body types, and preferences.
Quattro Motion Control for Various Body Types
Quattro Motion Control precisely controls water streams using four moving nozzles. By setting the patient’s height and shoulder width, the system can provide massage patterns that better match body size.
Four Nozzles for Simultaneous Treatment Areas
The four-nozzle system allows two different areas to be massaged at the same time, such as around the shoulder blade and back, upper and lower back, or lower back and thigh areas.
Switchable Four-Nozzle and Two-Nozzle Modes
The nozzle mode can be changed during massage. When using two nozzles, the massage pressure is approximately 25% stronger than when using four nozzles.
Over 200 Treatment Programs
Depending on the combination of treatment areas, over 200 treatment programs are available. With slight variations included, the system offers more than 20 massage patterns for different body areas.
Safety, Comfort & Transfer Support
The HS-30 is designed to support greater safety and comfort during transferring, standing, and treatment use.
Easy to Move Around On
The transfer-related area uses a specialized seat that limits sinking when sitting on the device. This helps reduce instability when getting on and off.
Easy to Get On and Off
The side of the bed includes open space for foot placement, allowing users to move their feet back toward the bed when standing.
Easy-to-Grip Frame
The frame has been designed to be easy to grip during transfers, supporting safer movement on and off the device.
Easy-to-Grip Handrails
One long handrail and two short handrails are included as standard equipment. The handrails support safer transfers and easier positioning.
Easy Mounting Height
The 490 mm seat height makes it easier for users, including smaller users, to get onto the device.
Anti-Wave Technology
The original anti-wave design helps control swinging motions and reduce unpleasant movement during treatment, supporting greater patient comfort.
Easy-to-Operate Touch Panel
The color LCD touch panel improves visibility and supports easy operation through a clear, smart interface design.
Made in Japan
