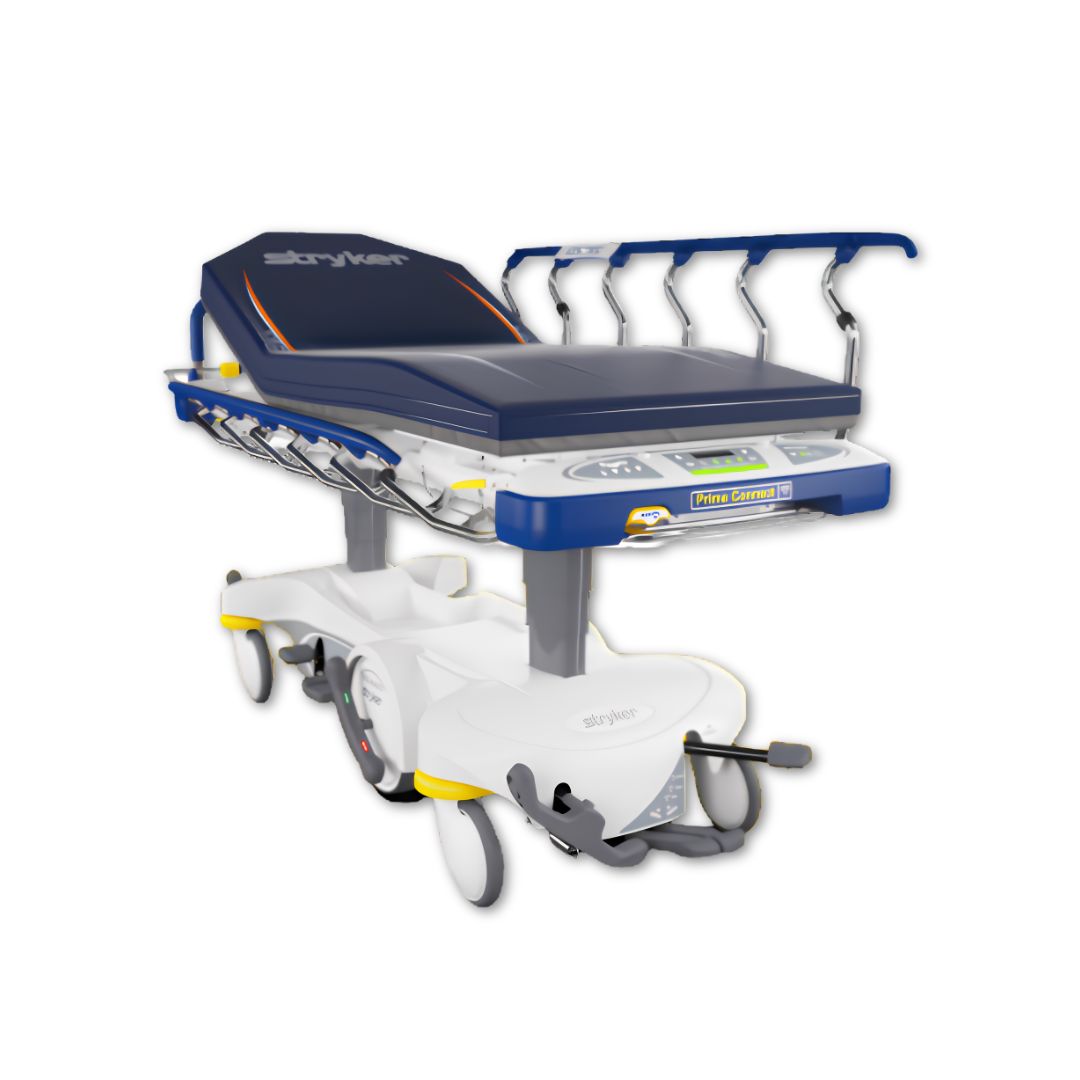

Stryker Prime Big Wheel Stretcher — Advanced Motorized Patient Transport
The Stryker Prime Big Wheel Stretcher redefines clinical mobility with industry-leading features designed to reduce caregiver strain and enhance patient comfort. Built for demanding hospital environments, this stretcher combines motorized drive technology with ergonomic design for seamless patient transport.
Key Features
- Big Wheel Advanced Mobility — Reduces start-up push force and steering effort for effortless maneuvering.
- Zoom Motorized Drive System — Decreases manual pushing, reducing caregiver fatigue on long transport routes.
- Electric-Powered Lift Pedal — Eliminates manual pumping; simply step on the hydraulic pedal for quick patient access.
- Prime Connect Footboard Display — Customizable screen with bed exit controls, power/location icons, strip light for bed exit status, integrated scale (kg/lbs), and caregiver controls.
- Recovery Chair Position — Provides a comfortable seated position, reducing unnecessary patient transfers.
- Lift Assist® Backrest — Uses patient weight to raise the head of the stretcher; drop seat design reduces boosting. Available as fully electric.
- IsoFlex® SE Gel Support Surface — Pressure redistribution and comfort to aid in prevention and treatment of pressure injuries.
- 700 lb (318 kg) Safe Working Load — Supports a wide range of patient needs.
- Power-Washable Design — Simplifies infection control and cleaning protocols.
Standard Features
- Less than 21-inch low height
- Litter-mounted oxygen bottle holder
- Center-locking brake system with dual end activators
- Dual, side-mounted foot control hydraulics with uni-lower pedal
- Dual end brake/steer controls
- Glideaway siderails
- Four integrated IV receptacles
- Trendelenburg / Reverse Trendelenburg positioning
- 8-inch Omni surface casters with integrated wheel covers
- Pneumatic backrest / stationary foot
- Thermoformed ABS base
Specifications
| Specification | 26-inch Litter | 30-inch Litter |
|---|---|---|
| Overall Length (1105 & 1115) | 85" (215.9 cm) | 85" (215.9 cm) |
| Overall Length (1125) | 86" (218.4 cm) | 86" (218.4 cm) |
| Overall Width — Siderails Up | 34" (86.4 cm) | 38" (96.5 cm) |
| Overall Width — Siderails Down | 26" (66 cm) | 30.5" (77.5 cm) |
| Patient Surface | 26" x 75.25" (66 x 191 cm) | 30" x 75.25" (76 x 191 cm) |
| Weight Capacity | 700 lb (318 kg) | 700 lb (318 kg) |
| Height — High | 34" (86.4 cm) | 34" (86.4 cm) |
| Height — Low (1105 & 1115) | 20.75" (52.7 cm) | 20.75" (52.7 cm) |
| Height — Low (1125) | 23" (58 cm) | 23" (58 cm) |
| Backrest Range | 0°– 90° | 0°– 90° |
| Knee Gatch | 0–5.5" | 0–5.5" |
| Trendelenburg / Reverse (1105 & 1115) | +17°/−17° (±3°) | +17°/−17° (±3°) |
| Trendelenburg / Reverse (1125) | +17°/−16° (±3°) | +17°/−16° (±3°) |
| Siderail Length | 14" x 57.75" (36 x 147 cm) | 14" x 57.75" (36 x 147 cm) |
| Caster Diameter | 8" (20 cm) | 8" (20 cm) |
| EMC Standard | IEC 60601-1-2 | IEC 60601-1-2 |
