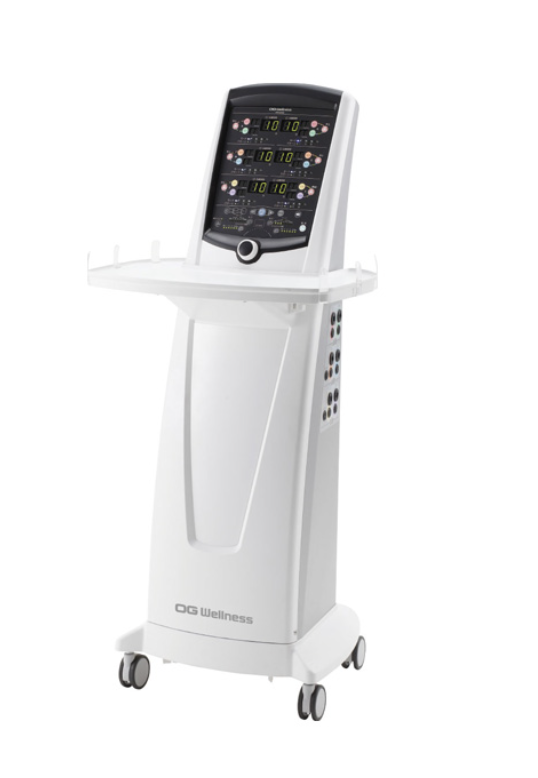

PHYSIOUS FS-350
A 12-channel type design that allows treatment of a wide range of areas and symptoms with one device. (6 channels available when using interferential wave mode or fusion mode.)
| Product name | Electrical Stimulator FS-350 |
|---|---|
| Rated power supply | AC 110V / 220V / 240V 50/60Hz |
| Power input | 320VA |
| External dimensions | Approx. 580 × 535 × 1300(H) mm |
| Weight | Approx. 28 kg |
| Channels | 12 channels |
| Maximum output voltage | 65 Vrms (at 10kΩ load) |
| Maximum output current | 45 mArms (at 500Ω load) |
| Output waveform | Sine waves: Interferential wave mode, medium frequency mode. Bi-directional symmetrical wave: Low frequency mode |
| Treatment frequency | 0Hz–600Hz (interferential wave mode) / 0Hz–120Hz (medium frequency mode) / 2Hz–60Hz (low frequency mode) |
| Fundamental frequency | 2kHz–10kHz (interferential wave mode) / 1kHz–11kHz (medium frequency mode) / 50Hz, 100Hz, 1kHz (low frequency mode) |
| Safety function | Over-current protection function, Auto zero start function |
* Standard accessories may vary depending on the set code.
Available Set Codes
| Model | Treatment Area | Application |
|---|---|---|
| FS-350-S | Wide and narrow | Pinpoint stimulation, heat response |
| FS-350-S1 | Wide | — |
| FS-350-S2 | Narrow | Pinpoint stimulation, heat response |
| FS-350-S3 | Wide | — |
| FS-350-S4 | Wide and narrow | — |
| FS-350-S5 | Wide and narrow | — |
| FS-350-S6 | Wide | — |
| FS-350-S7 | Wide | Heat response |
| FS-350-S8 | Wide and narrow | Pinpoint stimulation |
Made in Japan
