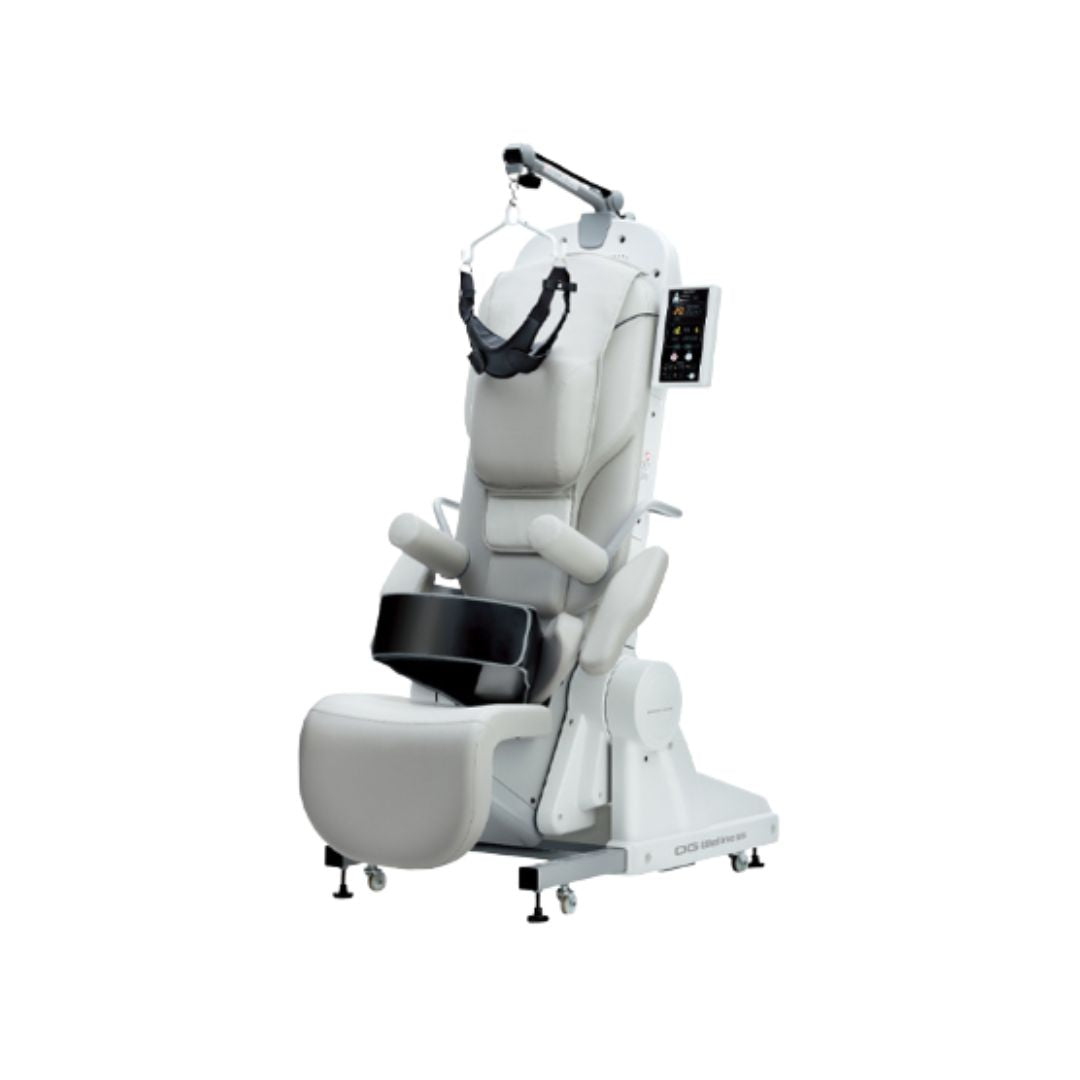

ORTHOTRAC LASEDIA OL-6600
ORTHOTRAC LASEDIA OL-6600 is a traction unit designed to perform both cervical and lumbar traction while allowing the patient to remain in a relaxed supine position. Its 2-in-1 design supports efficient treatment workflow, patient comfort, and therapist convenience.
The unit includes automatic traction support features, adjustable side supports, an inflatable traction belt, a firm-fit cervical sling, and safety functions such as a patient stop switch and over-traction protection.
Product Videos
Product Specifications
| Product Name | Traction Unit OL-6600 |
|---|---|
| Rated Power Supply | AC 110V / 220V / 230V / 240V, 50/60 Hz |
| Power Input | 200 VA |
| External Dimensions | Approx. 800 × 1240 × 1840(H) mm |
| Weight | Approx. 124 kg |
| Traction Force | Cervical: 29–245N / 3–25kgf, Lumbar: 49–588N / 5–60kgf |
| Treatment Time | 1–99 minutes, adjustable in 1-minute increments |
| Safety Function | Patient stop switch and over-traction protection feature |
Standard Accessories
| Blanket | OL5000-001 | 1 piece |
|---|---|---|
| Cervical Traction Hanger | OL6600-004 | 1 piece |
| Cervical Harness | OL6600-012 | 1 piece |
| Pillow Heater | OL6600-003 | 1 piece |
| Pillow (Gray) | OL6600-002 | 1 piece |
| Side Pad (Slim) (Gray) | OL6600-011 | 1 piece |
Key Features
Space-Saving 2-in-1 Design
Perform both cervical and lumbar traction with the patient in a relaxed position using one 2-in-1 traction unit.
Free Positionable Operation Panel
The control panel can be placed on either the right- or left-hand side upon installation, allowing the setup to match the treatment space.
Coldness-Reducing Heater
Equipped with a heater to help prevent the patient from feeling cold around the waist, neck, and shoulder areas. Two temperature settings are available.
Patient Comfort & Treatment Support
Auto-Fit Side Supports for Easier Supine Traction
OL-6600 is designed to provide cervical traction in a relaxed supine position. Compared to seated traction, this helps reduce neck muscle tension and supports a more comfortable treatment experience.
Automatically Adjusting Side Supports
The side supports move before treatment to fit different body types. They pull in toward the body during traction, providing secure upper body support.
Automatic Traction Force Setting
The machine weighs the patient and automatically sets the traction force based on the body weight percentage preset by the therapist, reducing the need for manual calculation.
* Can also be set manually. This function cannot be used as a body scale. The traction force is slightly reduced from the calculated amount for increased safety.
Easy-Fit Inflatable Traction Belt
The inflatable belt gently but firmly immobilizes the waist. Three tightness settings are available, and in Relax Mode the belt automatically deflates during rest time to reduce strain on the patient’s waist.
Easily Attachable Belt
The inflatable traction belt uses Velcro for easy attachment, reducing the time required to immobilize the patient so treatment can begin quickly.
Firm-Fit Cervical Sling
The newly developed cervical sling provides a firm fit to the back of the head, supporting comfortable cervical traction.
Head Weight Offset Function
A preset head weight is subtracted from the traction force set for cervical traction.
Relaxed Cervical Traction in Supine Position
Cervical traction is performed with the patient in a supine position. Compared to seated traction, the supine position can reduce neck muscle activity and support a more relaxed traction experience.
Made in Japan
