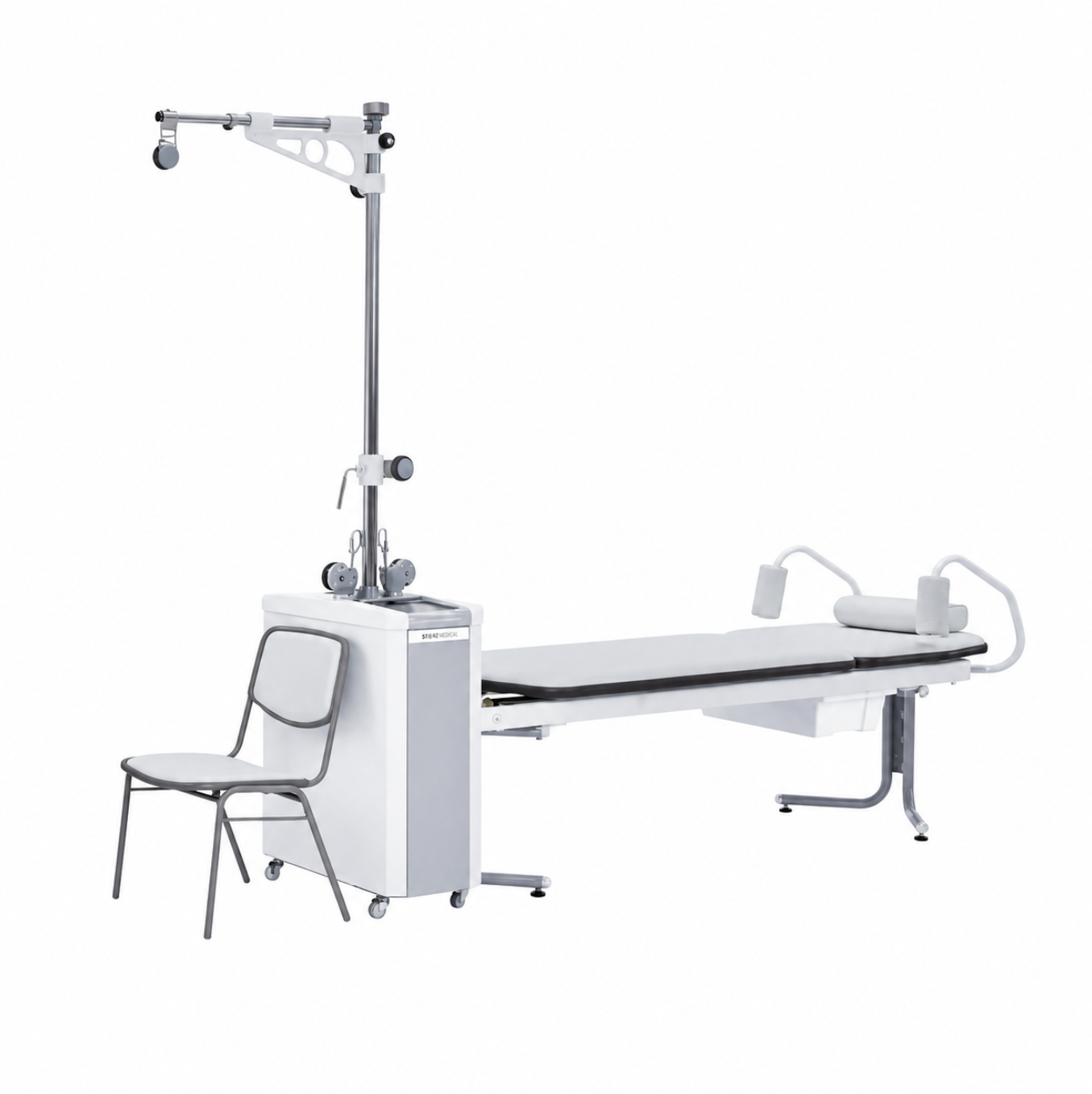

ORTHOTRAC OL-2200 / OL-1200
ORTHOTRAC is a patient-friendly traction system designed for safe and easy cervical and lumbar traction. The series includes models for single-patient and two-patient treatment setups, offering flexibility for different clinical environments.
The system includes a large operation panel, patient safety functions, side supports for improved stability, incremental traction increase mode, and optional accessories for enhanced treatment support.
Available Models
ORTHOTRAC OL-2200
Allows cervical and lumbar traction to be performed on two people at the same time using one device.
* Only available in the OL-2200 model.
ORTHOTRAC OL-1200
A single-patient device that provides both cervical and lumbar traction using one device.
* Only available in the OL-1200 model.
Key Features
Single-Touch Side Supports
The side supports help prevent spreading during traction and provide a stable, comfortable treatment experience.
* Photo shows the OH-270.
Musical Alarm with Light Indicator
Lights on top of the pole illuminate and a musical alarm plays when treatment ends, making it possible to confirm the end of treatment from a distance.
Large, Easy-to-Read Operation Panel
The operation panel displays traction force, treatment time, continuous traction time, and rest time separately. Independent setting switches make the device easier to configure according to treatment requirements.
Durable High-Quality Wire
The traction wire is coated with a protective film, helping reduce grime buildup and improve durability.
Incremental Traction Increase Mode
The device includes an incremental traction increase mode that gradually increases tractive force in stages up to the preset value.
Optional Hot Pack Connectivity
An optional electric heated hot pack for the neck can be connected. Power and temperature settings can be controlled through the main device’s display panel.
Product Specifications
ORTHOTRAC OL-2200
| Product Name | Traction Unit OL-2200 |
|---|---|
| Rated Power Supply | AC 110V / 220V / 230V / 240V, 50/60 Hz |
| Power Input | 240 VA + 10% or less |
| External Dimensions | Approx. 570 × 310 × 2100(H) mm |
| Weight | Approx. 75 kg |
| Maximum Traction Force | 970.2N / 99kgf |
| Safety Function | Patient stop switch, abnormal operation detection |
* Traction bed sold separately.
Made in Japan
ORTHOTRAC OL-1200
| Product Name | Traction Unit OL-1200 |
|---|---|
| Rated Power Supply | AC 110V / 220V / 230V / 240V, 50/60 Hz |
| Power Input | 150 VA + 10% or less |
| External Dimensions | Approx. 570 × 310 × 2100(H) mm |
| Weight | Approx. 60 kg |
| Maximum Traction Force | 970.2N / 99kgf |
| Safety Function | Patient stop switch, abnormal operation detection |
* Traction bed sold separately.
Made in Japan
Compatible Traction Beds
Traction Bed OH-270
| External Dimensions | Approx. 595 × 2020 × 815(H) mm |
|---|---|
| Seat Height | Approx. 565 mm |
| Weight | Approx. 50 kg |
Antifouling / antibacterial leather
Made in Japan
Traction Bed OH-275
| External Dimensions | Approx. 595 × 2020 × 815(H) mm |
|---|---|
| Seat Height | Approx. 565 mm |
| Weight | Approx. 52 kg |
Antifouling / antibacterial leather
Made in Japan
Optional Accessories
Triangle Bolster OL-4N
Placed under the thighs of a patient lying on the traction bed with legs bent, to support lumbar traction.
| External Dimensions | Approx. 350 × 300 × 250(H) mm |
|---|
Chair OL4-002
A chair with a backrest used for cervical traction.
| Seat Surface Dimensions | Approx. 400 × 380 mm |
|---|---|
| Seat Height | Approx. 390(H) mm |
Cervical Harness OL6600-012
The sling can be adjusted to the shape of the head to help prevent excessive pressure on the lower jaw.
Chest Traction Harness OL-1R
Designed to stretch out the iliac region.
Lumbar Harness OL-2M
The belt comes with a single-touch length adjuster.
Cervical Traction Hanger OL-1B
Designed exclusively for cervical traction and helps reduce dead weight when applying vertical traction.
Lumbar Traction Hanger OL-1C
Sturdily built for lumbar traction.
Hot Pack OL-4HP
Electric heat pack for the neck to be used with ORTHOTRAC. Comfortable warmth supports more effective treatment.
