OG PACKS KT-641 / KT-621
OG PACKS is an electric heat pack system designed for simple, controlled, and efficient heat therapy. The system allows independent temperature and treatment time settings by channel, making it suitable for treating multiple patients or multiple body areas at the same time.
The series includes the KT-641 and KT-621 models, with different accessory quantities and power input specifications. Both models support adjustable temperature, treatment timer settings, quick heating, and built-in temperature sensors for controlled operation.
Available Models

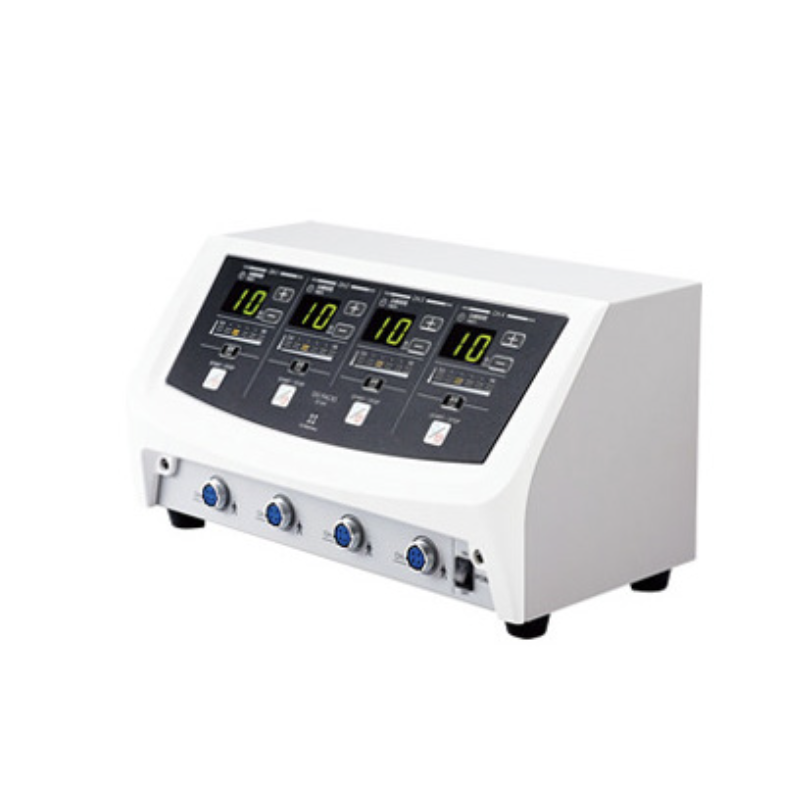

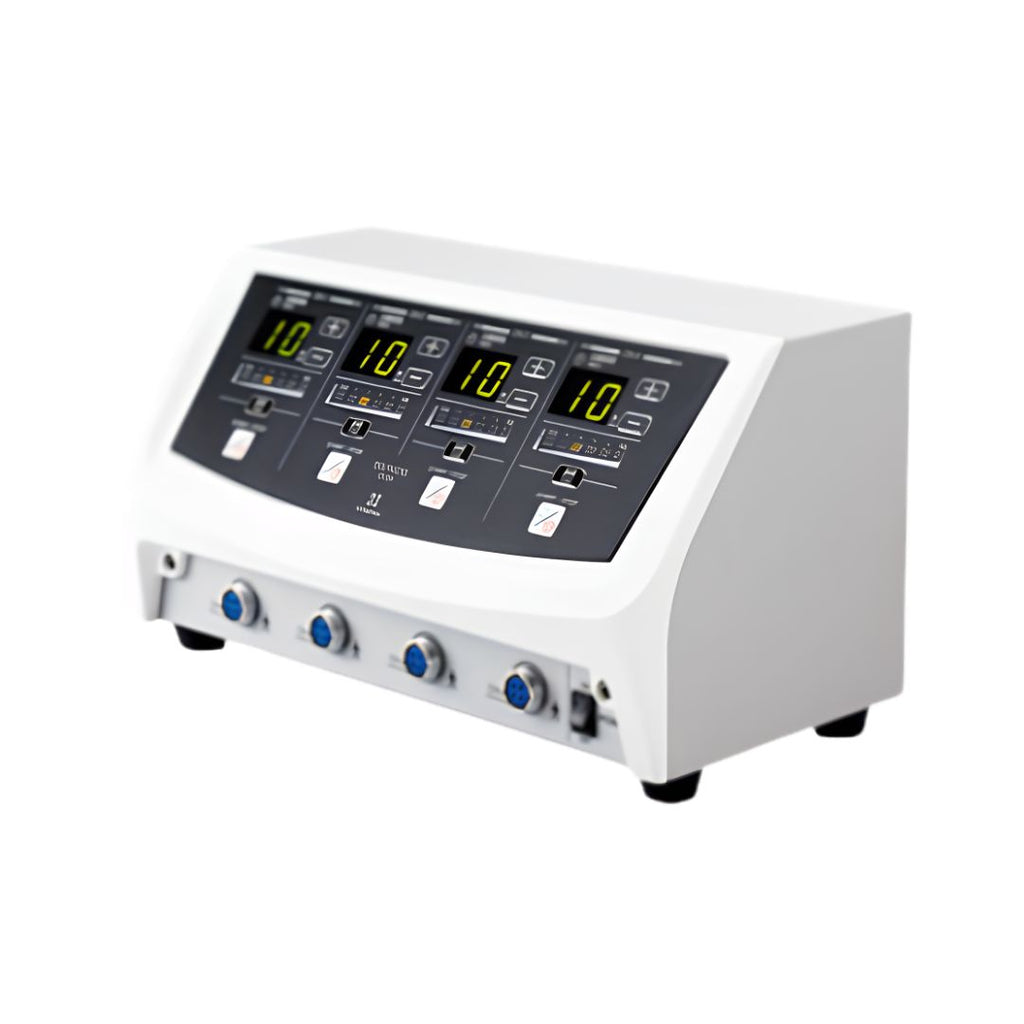

OG PACKS KT-641
Electric heat pack system supplied with four standard hot packs, one neck-fit hot pack, and four fastening belts.

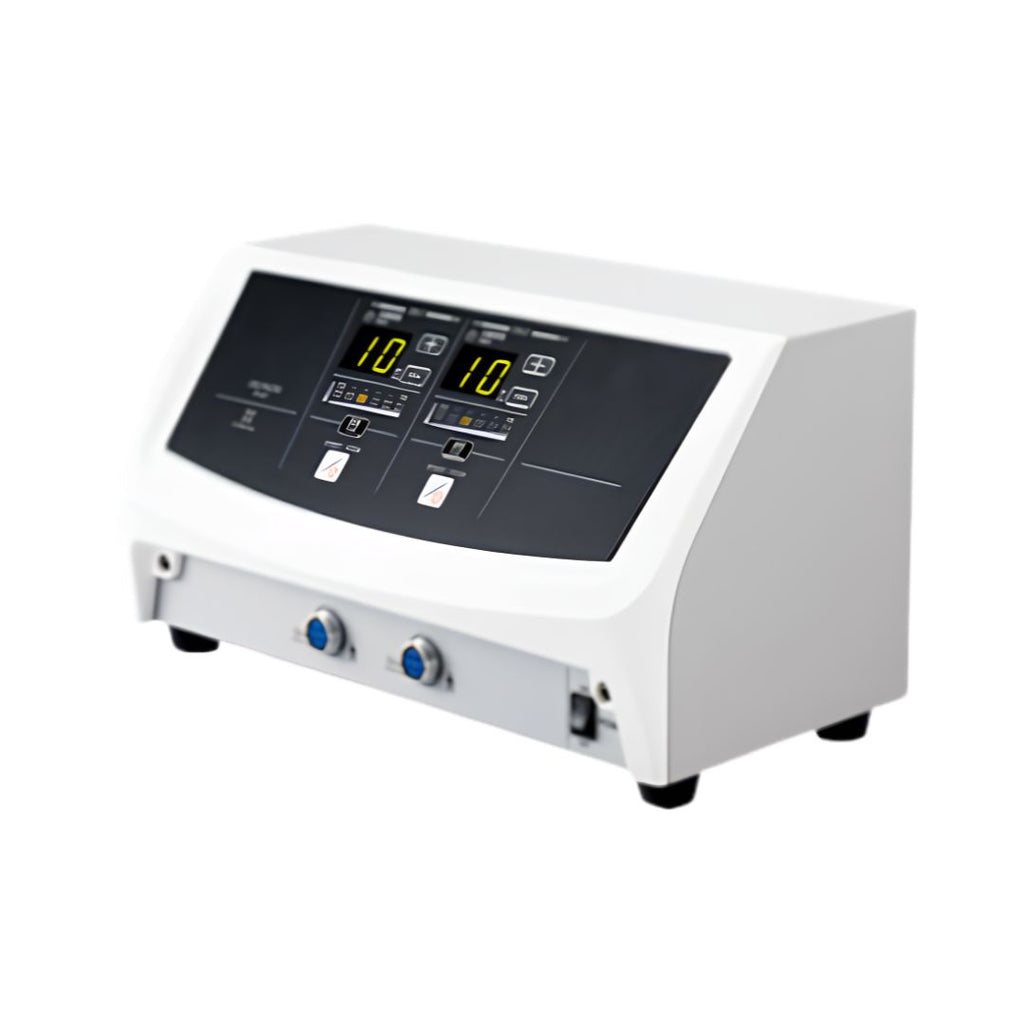

OG PACKS KT-621
Electric heat pack system supplied with two standard hot packs, one neck-fit hot pack, and two fastening belts.
OG PACKS KT-641 Specifications
| Product Name | Electric Heat Packs KT-641 |
|---|---|
| Rated Power Supply | AC 110V / 220V / 230V, 50/60 Hz |
| Power Input | 300 VA + 10% or less |
| External Dimensions | Approx. 401 × 213 × 218(H) mm |
| Weight | Approx. 8 kg |
| Hot Pack Temperature | 6 stages, approx. 5°C increments from around 50–75°C |
| Treatment Time | 1–30 minutes, adjustable in 1-minute increments |
| Standard Accessories |
Standard Hot Pack HE-3A × 4 Neck-Fit Hot Pack HE-3C × 1 Fastening Belt ELR-503 × 4 |
OG PACKS KT-621 Specifications
| Product Name | Electric Heat Packs KT-621 |
|---|---|
| Power Input | 160 VA + 10% or less |
| External Dimensions | Approx. 401 × 213 × 218(H) mm |
| Weight | Approx. 7 kg |
| Standard Accessories |
Standard Hot Pack HE-3A × 2 Neck-Fit Hot Pack HE-3C × 1 Fastening Belt ELR-503 × 2 |
* Other specifications are the same as KT-641.
Key Features
OG PACKS is designed for simple three-step operation while allowing independent temperature and treatment time settings for each channel.
Easily Identifiable Color Labels
Colored labels are attached to both the pack end and the connector end of the cord, making it easier to identify which channel is in use. This helps reduce operating mistakes and supports smoother treatment workflow.
Independent Channel Settings
Treatment temperature and time settings are stored by each channel. This allows multiple patients or multiple treatment areas to be managed at the same time.
Quick Heating
Keeping the power on maintains the packs at the set temperature, allowing treatment to begin quickly once started.
Temperature Sensor
Each pack includes an internal temperature sensor to help ensure the set temperature is not exceeded.
Timer Functions
Each channel has an independent timer. When treatment ends, flashing lights and a notification buzzer alert the user.
Simple 3-Step Operation
Step 1: Temperature Settings
Press the Temp. button to set the treatment temperature.
Step 2: Treatment Time Settings
Press the + and – buttons to set the treatment time.
Step 3: Start Treatment
Press the Start/Stop button to begin treatment.
* The sample control panel image displays the Lo low-temperature setting.
Accessories
| Product Name | Product Number | Minimum Ordering Unit |
|---|---|---|
| Standard Hot Pack | HE-3A | 1 |
| Neck-Fit Hot Pack | HE-3C | 1 |
| Fastening Belt | ELR-503 | 1 |
Optional Wagon
Wagon WG-100
A convenient wagon for placing various medical devices during daily use. It is equipped with casters, making it easy to move around the office or treatment area.
| Product Name | Wagon |
|---|---|
| Product Number | WG-100 |
| External Dimensions | Approx. 555 × 400 × 700(H) mm |
| Minimum Ordering Unit | 1 |
Made in Japan
