MICRO THERMY ME-9250 / ME-9150
MICRO THERMY is a microwave therapy device designed for effective treatment of both broad and narrow treatment areas. Its flexible applicator design allows the reflector panels to be adjusted according to the treatment area, supporting efficient irradiation for areas such as the lower back, shoulders, elbows, and knees.
The series includes the ME-9250 with two flexible applicators and the ME-9150 with one flexible applicator. Both models support continuous and intermittent output modes, treatment time adjustment, and safety functions for controlled operation.
Available Models

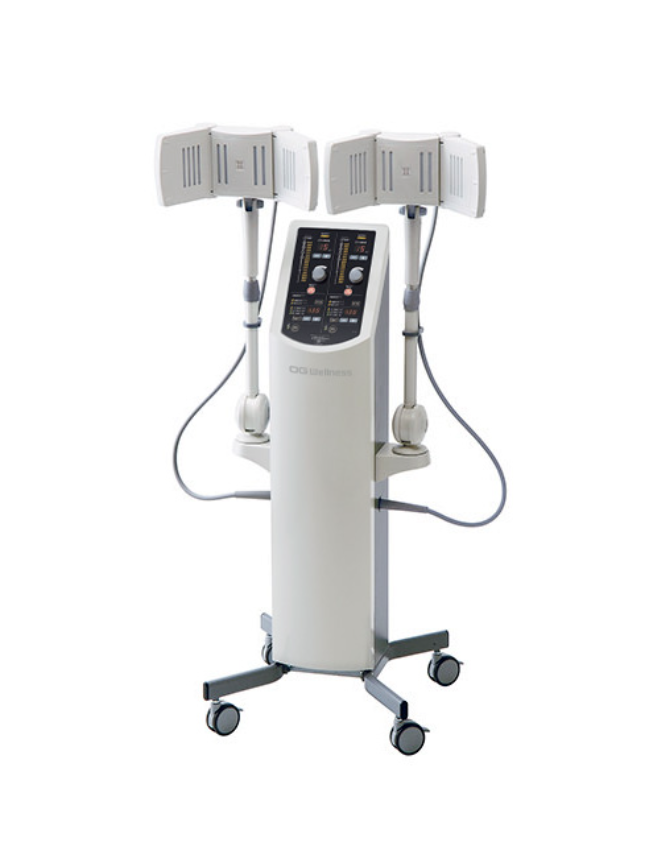

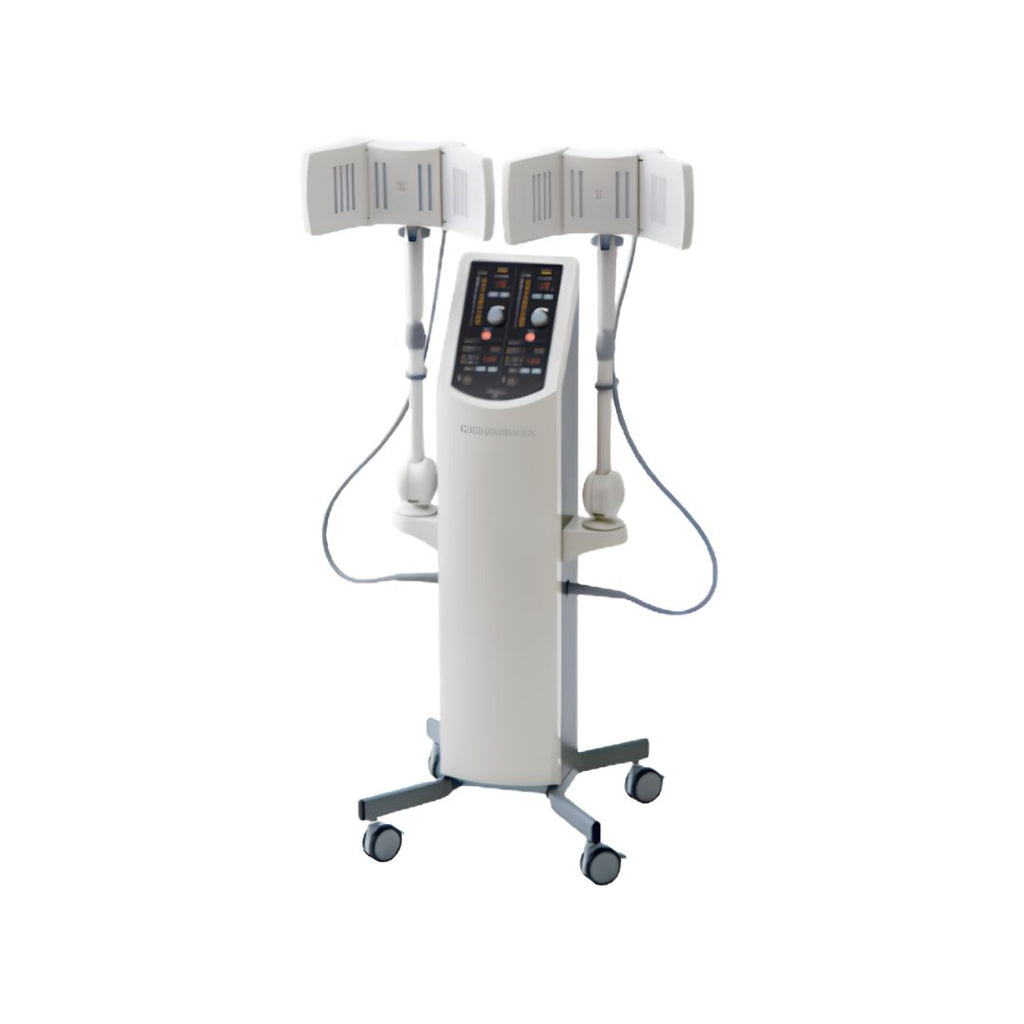

MICRO THERMY ME-9250
Microwave therapy device with two flexible 2-way applicators.

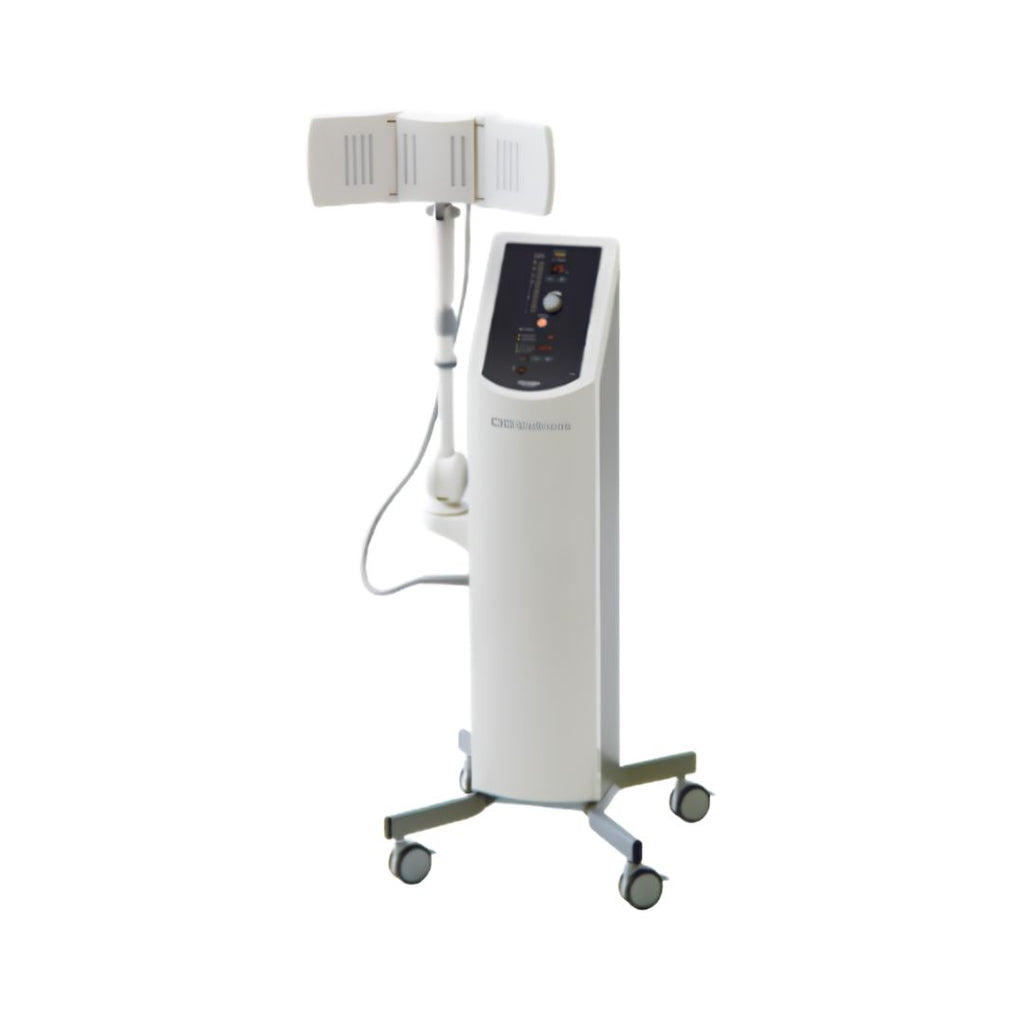

MICRO THERMY ME-9150
Microwave therapy device with one flexible 2-way applicator.
MICRO THERMY ME-9250 Specifications
| Product Name | Microwave Therapy Device ME-9250 |
|---|---|
| Rated Power Supply | AC 110V / 220V / 230V / 240V, 50/60 Hz |
| Power Input | 1400 VA + 10% or less |
| External Dimensions | Approx. 493 × 482 × 1170(H) mm |
| Weight | Approx. 40–52 kg |
| Frequency | 2450 ± 50 MHz |
| Output Mode | Continuous output mode / intermittent output mode |
| Rated Output |
Continuous output mode: 125W continuous, output control 5–125W in 5W increments. Intermittent output mode: 200W peak / 125W average, average output control 5–125W. |
| Treatment Time | 1–30 minutes, adjustable in 1-minute increments |
| Safety Functions | Over-power protection circuit, output limit function 5–125W, and zero-start safety feature |
| Applicator Shape | Flexible applicator × 2 |
MICRO THERMY ME-9150 Specifications
| Product Name | Microwave Therapy Device ME-9150 |
|---|---|
| Power Input | 750 VA + 10% or less |
| Weight | Approx. 30–35 kg |
| Applicator Shape | Flexible applicator × 1 |
* Other specifications are the same as the ME-9250.
Key Features
Effective Irradiation for Broad and Narrow Treatment Areas
The applicator reflector panels can be freely adjusted, allowing effective irradiation for broad areas such as the lower back, as well as narrower treatment areas such as the shoulders, elbows, and knees.
One-Touch Easy-Use Arm
The arm can be expanded and rotated easily by pressing and holding the Arm Lock Release Button. This makes applicator positioning quick and simple.
Output Restriction Function for Increased Safety
The output limit function helps prevent the output from exceeding the preset level during use.
Mode Switch Function
Users can switch between continuous output mode and intermittent output mode depending on treatment requirements.
Enhanced Visibility
Output level meters and a digital treatment time display make it easy to check the treatment status at a glance.
Made in Japan
