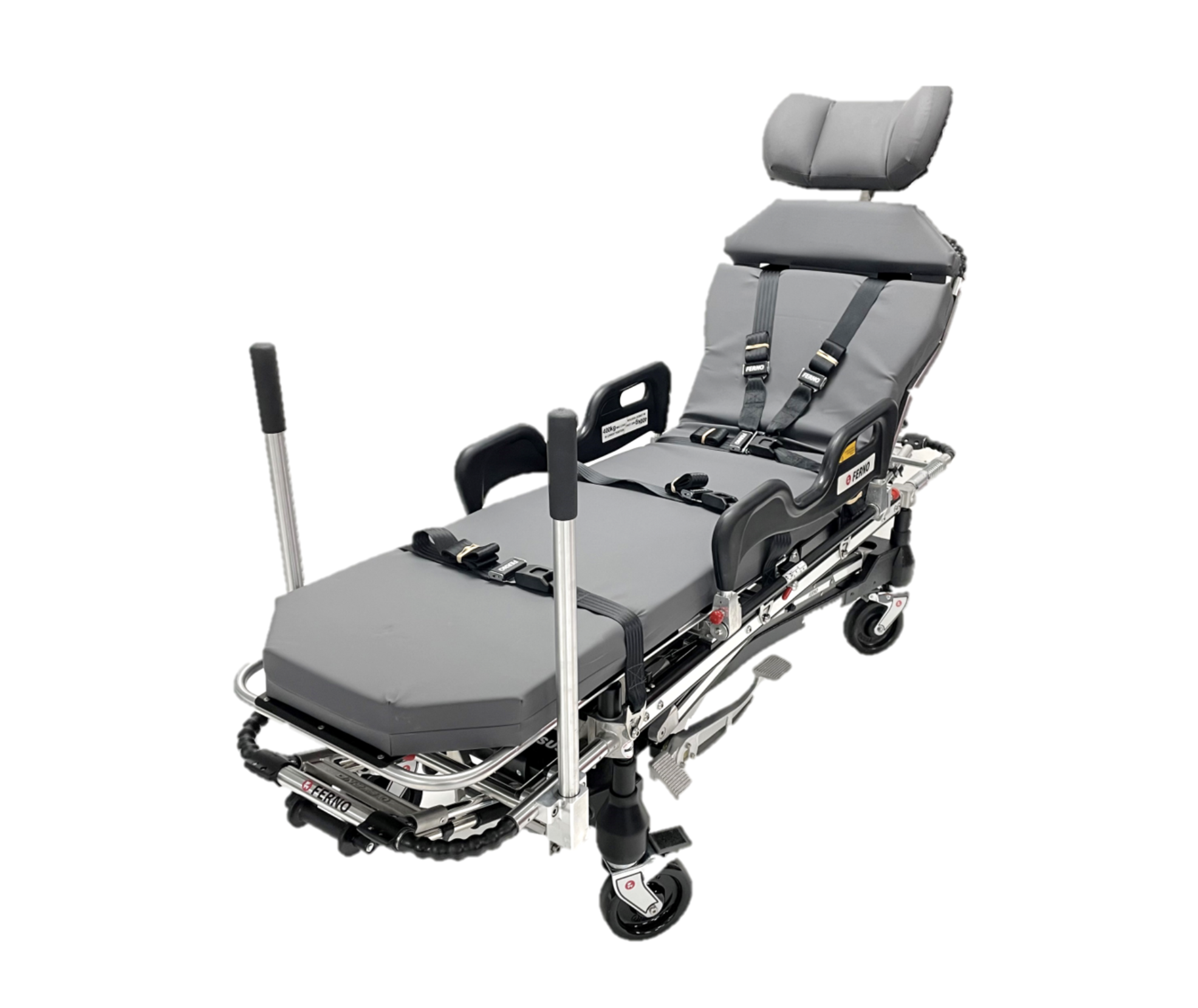

FERNO Megasus Bariatric Ambulance Trolley
The FERNO Megasus Bariatric Ambulance Trolley is designed for use in vehicles equipped with a tail-lift or ramp, providing a specialist patient transport solution for larger-size and bariatric patients. Based on the proven design of the FERNO Pegasus trolley, the Megasus adds width-extending cotsides and enhanced patient support features to increase surface area, comfort, and safety during bariatric transfers.
Bariatric patient transport requires a trolley that supports both patient comfort and operator safety. The Megasus is designed to meet this requirement by offering a wider patient surface, strong load capacity, smooth maneuverability, and a manually operated hydraulic raise and lower system for controlled handling.
With a load capacity of 200 kg in the raised position and 400 kg in the lowered position, the FERNO Megasus supports specialist ambulance services, patient transport providers, hospitals, and healthcare teams managing bariatric patient movement.
Common Applications
The FERNO Megasus is suitable for ambulance fleets, bariatric transport teams, patient transport services, emergency departments, and healthcare providers requiring a specialist trolley for larger-size patient transfers.
Bariatric Patient Transport
- Specialist bariatric patient transfers
- Transport of larger-size patients
- Ambulance vehicles with tail-lift or ramp access
- Hospital and patient transport service applications
Patient Comfort and Operator Safety
- Width-extending cotsides for increased patient surface area
- Wider backrest and backrest mattress
- Hydraulic manual raise and lower system
- Smooth maneuverability for safer handling
Features and Benefits
Width-Extending Cotsides
Extending-width cotsides increase the available patient surface area when required, supporting larger-size and bariatric patients during transport.
Flexible Cotside Options
Available with standard-length extending cotsides and mattress sidepads, or longer-length extending cotsides with full-length inflatable sidepads.
Wider Backrest Support
Wider backrest and backrest mattress provide improved support for patients with larger upper-body size.
Hydraulic Raise and Lower System
Manually operated hydraulic up and down lift operation supports controlled patient positioning without powered lifting.
High Load Capacity
Supports 200 kg in the raised position and 400 kg in the lowered position, making it suitable for specialist bariatric transport requirements.
Excellent Maneuverability
Low-friction wheels, ergonomic push-pull handles, and optional foot-end push poles help operators move and position the trolley more easily.
Infection Prevention Design
IPC-compliant design includes anti-microbial paint finish, Silver Biosafe harness restraints, and an easy-to-clean Anti-Bacterial Pressure-Relief ABPR mattress.
Enhanced Night Visibility
Reflective strips on the top, base, and X-frame rails help improve visibility during night operations and low-light ambulance environments.
Removable and Reversible Headrest
The removable and reversible headrest supports patient positioning flexibility during transport.
Ambulance Lock Compatibility
Compatible with FERNO Two Part Locking System and selected in-vehicle lock options for secure ambulance integration.
Product Specifications
| Product Type | Bariatric ambulance trolley for vehicles with tail-lift or ramp |
|---|---|
| Weight | 73 kg |
| Load Capacity, Raised Position | 200 kg |
| Load Capacity, Lowered Position | 400 kg |
| Width | 95.5 cm |
| Height | 88 cm |
| Length | 195 cm |
| Lift Operation | Manual hydraulic raise and lower system |
| Certification | Tested and certified to EN 1789 |
Compatible Fasteners
Standard 2-Part Lock
NMI 2-Part Track Lock
Unwin 2-Part Track Lock
SlideLock™ 150 mm
SlideLock™ 255 mm
uni-clipdoc_1.jpg?width=2190&height=2416&ext=.jpg)
UniClipDoc
Specialist Bariatric Trolley for Ambulance and Patient Transport
The FERNO Megasus Bariatric Ambulance Trolley provides a specialist solution for larger-size patient transfers in vehicles with tail-lift or ramp access. With width-extending cotsides, wider backrest support, hydraulic manual raise and lower operation, 400 kg lowered load capacity, infection-control materials, reflective visibility features, and compatibility with multiple in-vehicle lock systems, Megasus supports patient comfort, operator safety, and reliable bariatric transport performance.
