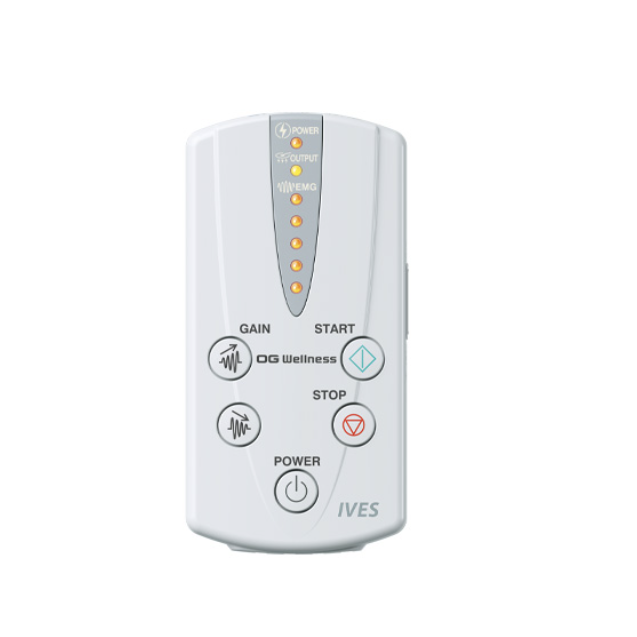

IVES GD-612
Treatment-only sub-unit that allows the patient to continue their rehabilitation independently. Treatment parameters must first be set in GD-611 and then exported to GD-612 to begin treatment.
Palm-sized and easy to carry
Weighs approximately 95 g. Small and light enough to wear around your neck or carry in your pocket. The battery charges simply by placing the unit on its dedicated charger.
Simple operation

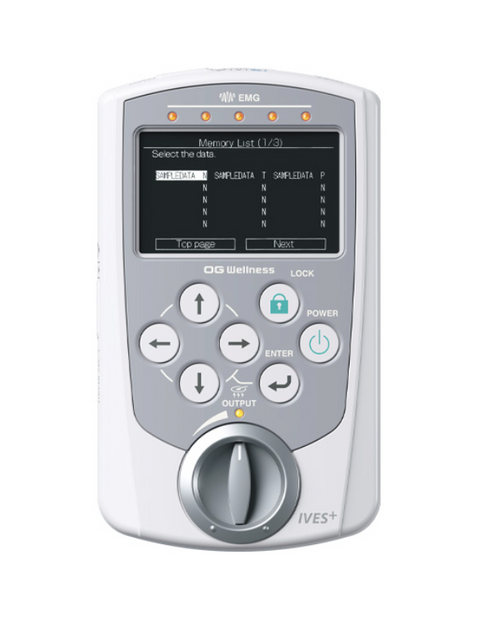

Set treatment conditions in IVES＋ (GD-611) and transfer them to IVES (GD-612). To start treatment, simply press the Start switch.
Upper and lower limb treatments
Features two treatment modes — Power Assist and Sensor Trigger — enabling treatment for both upper and lower limbs.
| Rated power supply | 2.4 VDC (Battery Pack Ni-MH) |
|---|---|
| Power input | 1.6 VA |
| External dimensions | Approx. 50 × 100 × 25(H) mm |
| Weight | Approx. 95 g (including Battery Pack) |
| Maximum output voltage | 210 Vp-p (Load resistance: 500 Ω) |
| Maximum output current | 35 mArms (Frequency: 100 Hz, load resistance: 500 Ω) |
| Pulse width | Three repetitive outputs of 50 μsec each |
| Output frequency | 20 Hz: Power Assist Mode / 1 to 100 Hz: Sensor Trigger Mode |
| Treatment mode | Power Assist Mode, Sensor Trigger Mode (when Gait Sensor is being used) |
| Treatment time | Power Assist Mode: 5, 10, 15, 20, 25, 30 minutes and continuous. Sensor Trigger Mode: continuous only |
| Safety function | Over-current protection function, low battery alarm function, final voltage detection function |
Made in Japan
