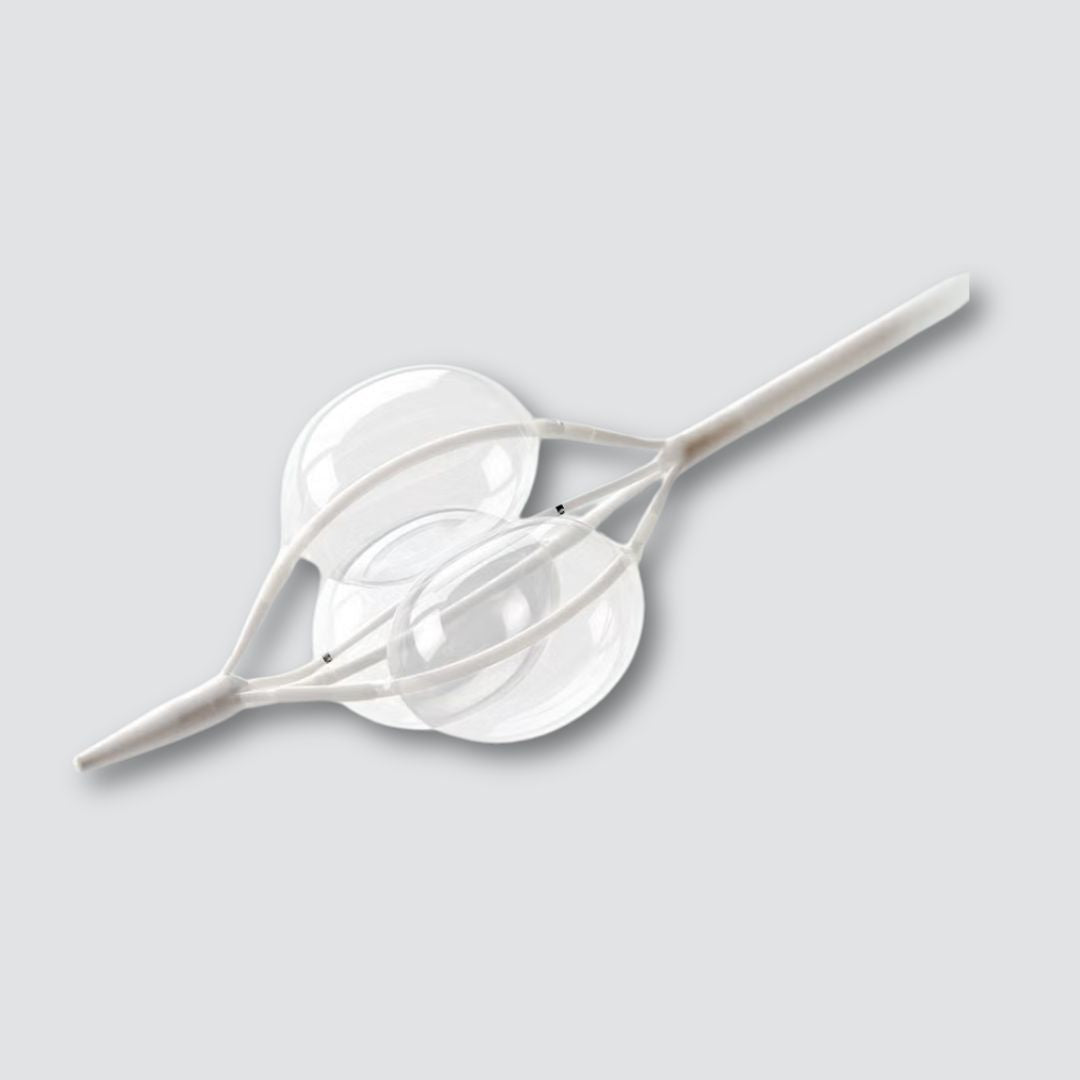

Gore® Tri-Lobe Balloon Catheter
Continuous Blood Flow. Minimized Potential for Endoprosthesis Movement.
The Gore® Tri-Lobe Balloon Catheter provides surgeons with greater stability and control in positioning endovascular grafts. Its unique tri-lobe design allows continuous blood flow around the lobes while inflated, reducing hemodynamic disruption throughout the procedure.
Key Features
- Device stability — Reduced endoprosthesis movement during positioning.
- Continuous blood flow — Unique tri-lobe design allows continuous blood flow around the lobes while inflated, without occluding the aorta.
- Compliant construction — Compliant polyurethane balloons offer exceptional conformance to the endoprosthesis.
- Greater control — Rapid, uniform, and simultaneous balloon lobe inflation/deflation minimizes potential blood pressure spikes.
Device Compatibility
Available in two sizes, both compatible with 18 Fr introducer sheaths:
- Small (16–32 mm) — For use with the Gore® TAG® Conformable Thoracic Stent Graft with ACTIVE CONTROL System, the Gore® TAG® Thoracic Branch Endoprosthesis, or the Gore® EXCLUDER® AAA Endoprosthesis.
- Large (26–42 mm) — For use with the Gore® TAG® Conformable Thoracic Stent Graft with ACTIVE CONTROL System or the Gore® TAG® Thoracic Branch Endoprosthesis.
Available Sizes
| Item Number | Balloon Ø | Working Length | Sheath | Size |
|---|---|---|---|---|
| BCM1634 | 16 mm | 34 mm | 18 Fr | Small (16–32 mm vessels) |
| BCL2645 | 26 mm | 45 mm | 18 Fr | Large (26–42 mm vessels) |
