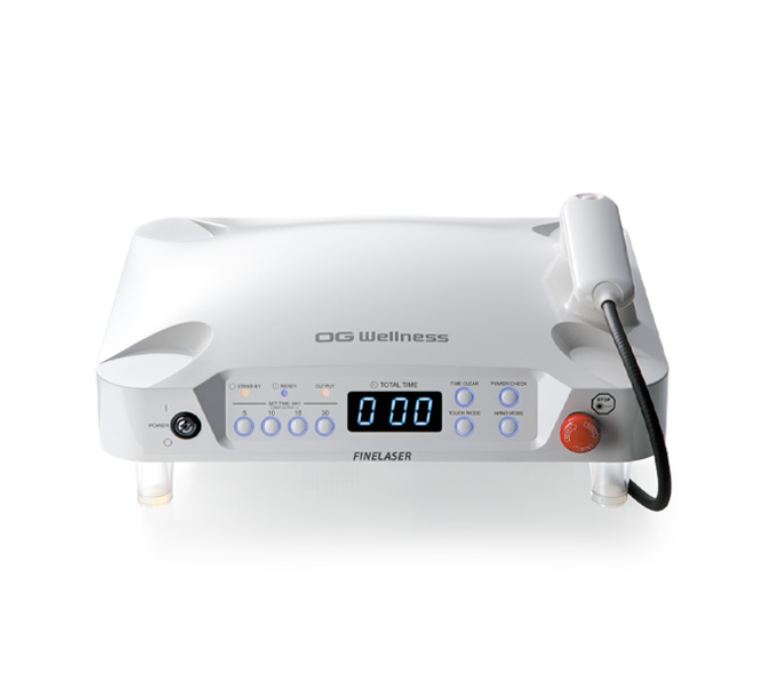

FINELASER EL-1000
FINELASER EL-1000 is a laser therapy device designed for high-output pulse irradiation. It uses an InGaAsP semiconductor laser with an 830nm wavelength to support precise treatment for deep tissue areas while minimizing heat generation.
The device is designed for safe, efficient, and easy operation, with touch sensor mode, hand switch mode, one-touch treatment time settings, emergency stop functionality, power check functionality, and multiple safety features.
Product Video
Product Specifications
| Product Name | Laser Therapy Device EL-1000 |
|---|---|
| Power Input | 150 VA + 10% or less |
| External Dimensions | Approx. 430 × 340 × 157(H) mm |
| Mass | Approx. 5.6 kg |
| Rated Power Supply | 100V / 110V / 220V / 230V / 240V, 50/60 Hz |
| Laser Element | InGaAsP semiconductor laser |
| Wavelength | 830nm ± 20nm |
| Average Output | 1W ± 20% |
| Peak Output | 10W ± 20% |
| Mode of Operation | Intermittent irradiation, ON: 20ms / OFF: 180ms |
| Irradiation Time | 5, 10, 15, or 30 seconds |
| Irradiation Area | 1.5 cm² |
| Safety Functions | Key lock, SET TIME button, emergency stop button, door interrupt connector, STAND-BY / READY display, alert indicator, auto irradiation shut-off, and error detection. |
| Standard Accessories | Safety Goggles EL1000-001, 2 pairs |
High Output Pulse Irradiation
Reaches Deep Tissue Pain Fast
Semiconductor laser therapy is designed to help relieve muscle and joint inflammation-related pain by acting on blood vessels and muscles using a low-intensity laser beam.
Laser therapy reaches deep tissue with precision, without causing heat or the discomfort that may occur with electrical stimulation. Treatment times are shorter compared with many other physiotherapy modalities.
It can be used for applications such as sore shoulders, lower back pain, and rheumatoid arthritis.
Comparison of Continuous and Pulsed Laser Therapy
High-Power Pulsed Laser Therapy
FINELASER uses a 1W average / 10W peak pulsed laser beam. Because pulsed laser emission is intermittent, cooling occurs between emissions, allowing a high-intensity beam to reach deep tissue safely without generating excessive heat.
High Tissue Permeability at 830nm
The 830nm wavelength is resistant to absorption by water and hemoglobin, supporting strong transmission into deeper tissue areas.
Touch Sensor and Hand Switch Mode
Touch Sensor Mode
Touch Sensor Mode detects when the tip of the applicator contacts the treatment area, activating laser irradiation. Treatment can be performed safely because the applicator automatically stops when removed from the treatment area.
Hand Switch Mode
Hand Switch Mode allows treatment without direct contact when contact irradiation is not preferred, such as when pain in the affected area is intense.
Easy Operation and Safe, Efficient Treatment
FINELASER features a modern design with gentle curves and a glossy finish. Treatment mode and duration can be set with one-touch operation, while high-level safety functions support an efficient treatment environment.
01. Treatment Time Settings
Short treatment time is one of the benefits FINELASER provides. Treatment times of 5, 10, 15, or 30 seconds can be selected easily with one-touch operation.
02. Mode Change
The Touch Mode button for contact irradiation or the Hand Mode button for non-contact irradiation lights up according to the selected mode.
03. Emergency Stop Button
The device is equipped with an emergency stop button for use in case of errors or abnormal operation.
04. Application Indicator / Hand Switch
During irradiation, the output indicator and the applicator indicator light up. In Hand Switch Mode, the hand switch button should be pressed for one full second to begin irradiation.
Additional Treatment Support Features
Wide Irradiation Area
The applicator’s irradiation area is as wide as 1.5 cm² and can easily cover the affected area.
Power Check Function
The applicator holder is equipped with a power check function to detect dust, foreign matter, and excess or insufficient laser beam power. The laser beam power can be checked before treatment by pressing the Power Check button.
Clinical Applications of Low-Intensity Laser Therapy
Head and Neck Pain
- Cervical sprain
- Myofascial pain syndrome
- Tension headache
Facial Pain
- Secondary trigeminal neuralgia
- Facial palsy
- Atypical facial pain
- Temporomandibular joint disorder
Cervical Shoulder Pain
- Cervicobrachial syndrome / stiff neck
- Frozen shoulder
- Tennis elbow
- Tendinitis
- Shoulder-hand syndrome
Lower Limb Pain
- Lower back pain / chronic lower back pain
- Sacroiliac joint pain
- Sciatica
- Knee osteoarthritis
Other
- Postherpetic neuralgia
Hands-Free Treatment Support
By using the optional arm to hold the applicator in a fixed position, medical professionals can work more efficiently by multitasking or tending to other patients. The arm angle can be freely adjusted with the probe attached.
Arm Lock Function
The arm supports effective treatment, helps reduce risk, and increases safety with features such as locking after 180° of rotation.
* The arm and cart are optional accessories.
Adjustable Arm for Multiple Treatment Positions
The adjustable arm can reach the patient in various positions, including the knee, lower back, and shoulder.
Safety Goggles
The user and patient must wear safety goggles to protect their eyes from the semiconductor laser.
Cart
The optional cart can be used with the arm to keep the probe in a fixed position or to move the device. The lower shelf provides a wide surface for storing equipment.
Optional Accessories
Safety Goggles
| Product Name | Safety Goggles |
|---|---|
| Product Number | EL1000-001 |
| Minimum Ordering Unit | 1 |
Other Options
| Product Name | Product Number | Minimum Ordering Unit |
|---|---|---|
| Arm | EL1000-002 | 1 |
| Door Interrupt Switch | EL1000-003 | 1 |
| Cart | WG-7 | 1 |
Made in Japan
