Exercise Stairs, Ramp, Mirror & Training Stool Series
This rehabilitation range supports gait training, stair practice, transfer training, standing posture correction, and lower-limb strengthening. It is suitable for rehabilitation patients using canes, crutches, parallel bars, or assisted walking programs.
The lineup includes exercise stairs for stair climbing practice, a low-step stair model, exercise ramp and curbs for early gait training, a posture mirror for standing and walking correction, and a training stool set for sitting, standing, and transfer practice.
Available Products
GH-455 Exercise Stairs
Stair practice equipment for patients using canes or crutches, supporting stair climbing, muscle strength recovery, stamina, and gait confidence.
GH-456 Low Step Exercise Stairs
Low-step version of the exercise stairs, suitable for users who require smaller step height progression during rehabilitation.
GH-34 Exercise Ramp and Curbs
Used during early gait training and strength training, allowing practice on slopes and steps with flexible layout options.
GH-510 Posture Mirror
Full-body mirror for posture observation during gait training, standing practice, and parallel bar exercises.
GH-371 Training Stool
Four-step stool set used for sitting, standing, and transfer practice during rehabilitation.

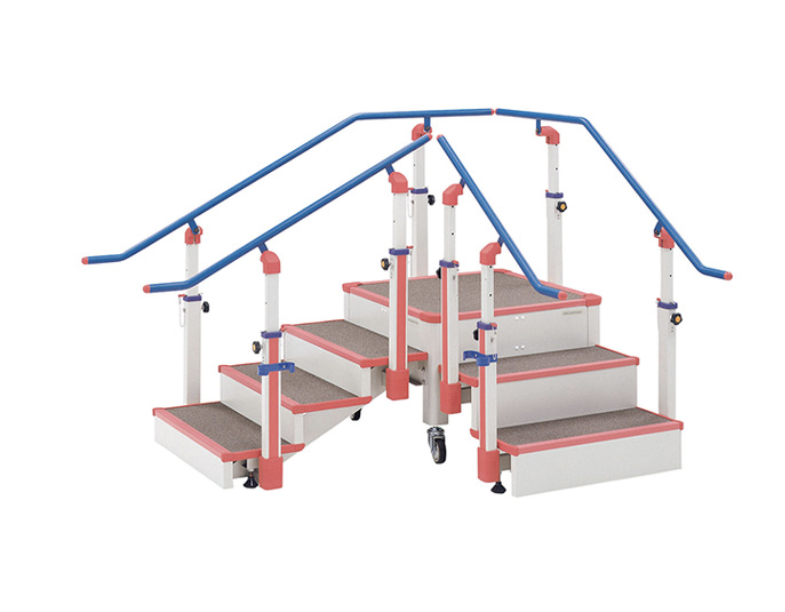

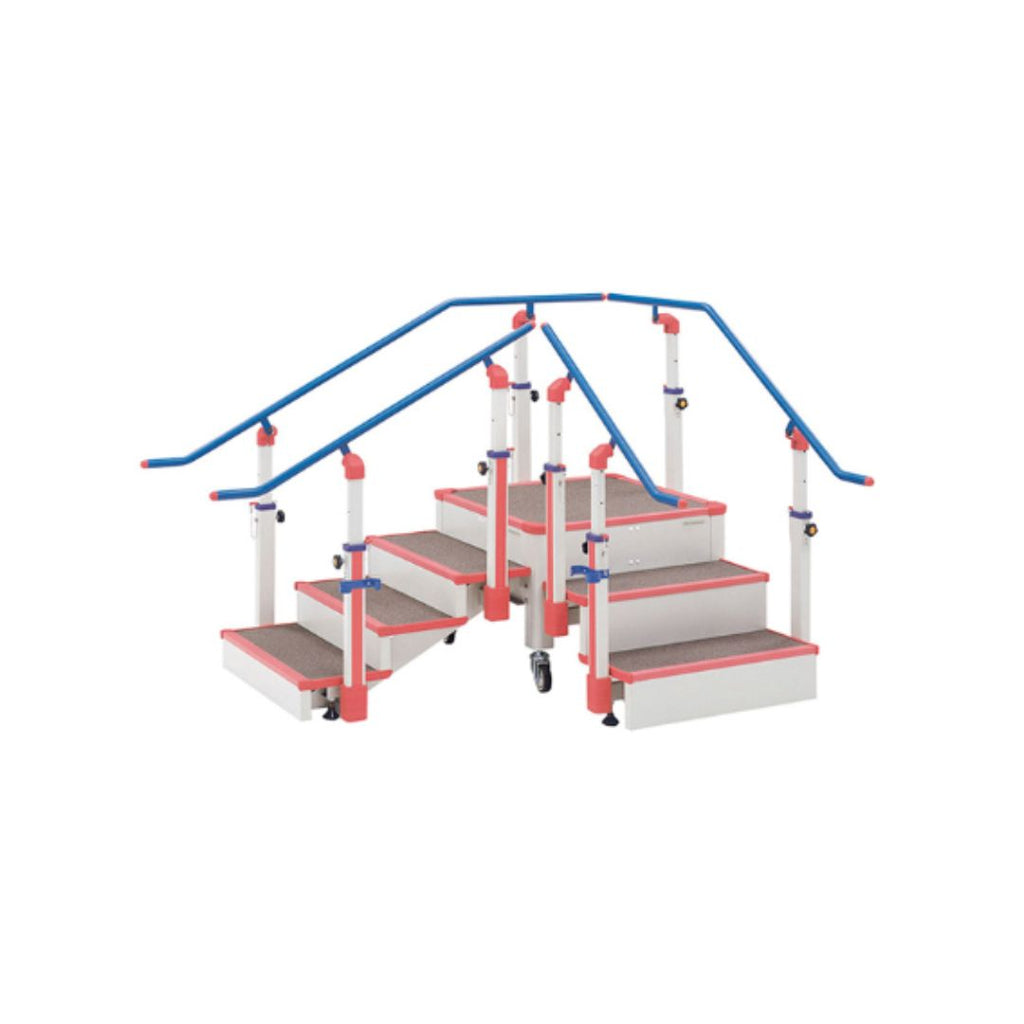

GH-455 Exercise Stairs
Lower limb injury patients using canes or crutches can use the GH-455 to practice going up and down stairs. Stair practice supports recovery of muscle strength, stamina, coordination, and confidence during rehabilitation.
Wide Top Platform
The platform at the top is wide enough for patients to change direction, pause, or rest during stair practice.
Height-Adjustable Handrails
Adjustable handrails support safer use. Patients using a cane can hold the handrail with their free hand.
Flexible Layout

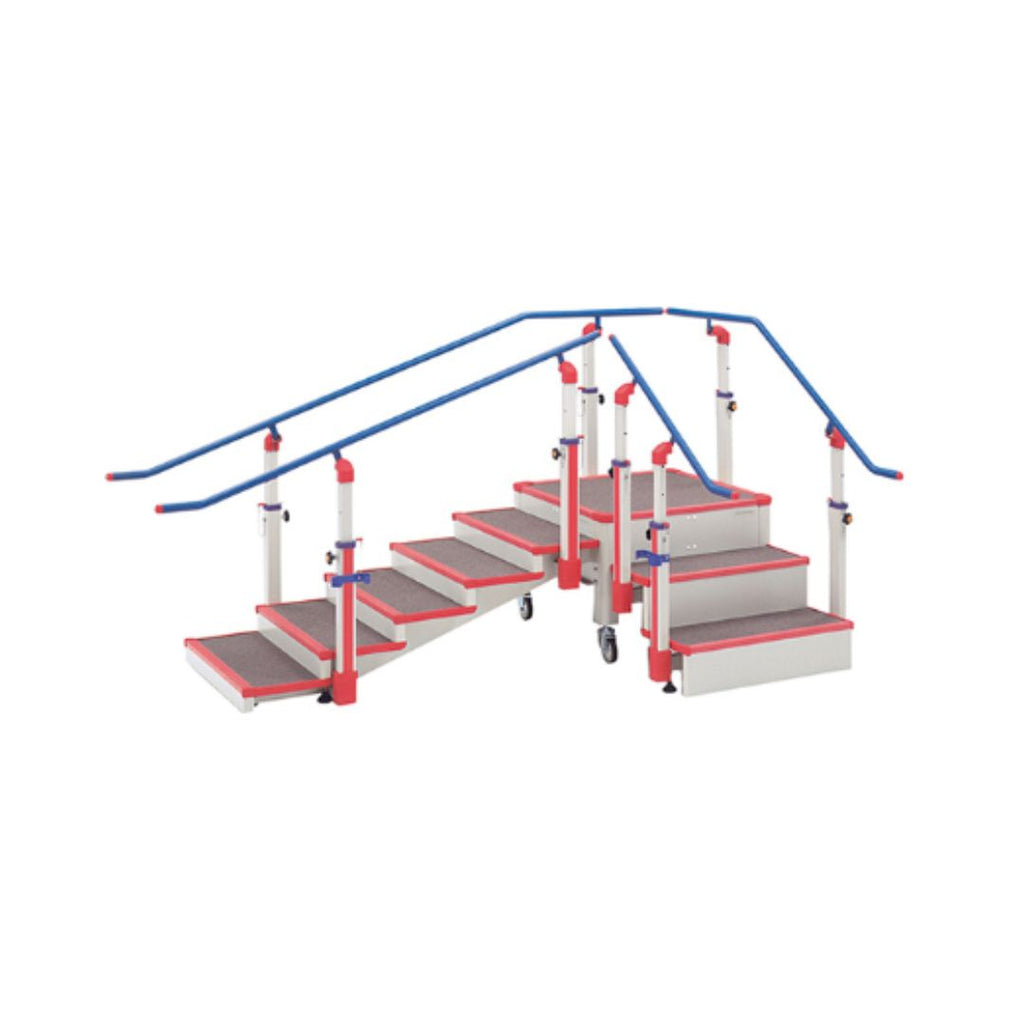

The platform and stairs can be arranged in either a straight-line layout or an L-shaped layout.
Movable and Stable
Casters and adjuster legs allow the stair set to be moved easily while remaining secure when stationary.
GH-455 Specifications
| Material |
Steel Handrail: steel with powder coating Steps: non-slip PVC sheet covering |
|---|---|
| External Dimensions, L-Shaped | Approx. 1,836 × 2,136 × 1,170 to 1,500(H) mm |
| External Dimensions, Straight | Approx. 977 × 2,994 × 1,170 to 1,500(H) mm |
| Handrail Width | 750 mm, Φ34 |
| Steps | 150 mm × 4 steps, 200 mm × 3 steps |
| Landing Surface / Height | 850 × 850 mm / 600 mm |
| Stair Surface | 780 × 300 mm |
| Handrail Height | 570, 680, 790, or 900 mm from steps |
| Weight | Approx. 172 kg |
Installation note: The distance between the platform height of 60 cm and the ceiling should be at least 2 meters.
GH-456 Exercise Stairs Low Step Type
The GH-456 is a low-step version of the exercise stairs. It is designed for users who need a more gradual stair training progression while maintaining the same core safety and usability features as the GH-455.
GH-456 Specifications
| External Dimensions, L-Shaped | Approx. 1,836 × 2,736 × 1,170 to 1,500(H) mm |
|---|---|
| External Dimensions, Straight | Approx. 977 × 3,594 × 1,170 to 1,500(H) mm |
| Weight | Approx. 190 kg |
* All specifications other than those listed above are the same as GH-455.
GH-34 Exercise Ramp and Curbs
The GH-34 is used in the early stages of gait training and strength training. It can be used together with parallel bars and provides practice for navigating a slope and steps. The ramp and curbs can be arranged in a straight line or L-shape, and the steps can be pushed in when required.
GH-34 Specifications
| External Dimensions |
Platform: approx. 1,045 × 1,045 × 233(H) mm Ramp: approx. 1,045 × 1,305 × 233(H) mm |
|---|---|
| Material |
Step surface: wooden, woven fabric laminated vinyl floor sheet Protective rubber edge: rigid polyvinyl chloride |
| Weight |
Approx. 92 kg total Ramp: 25.6 kg, platform: 23.6 kg, stairs: 18.7 kg, 14.2 kg, and 10.0 kg |
GH-510 Posture Mirror
The GH-510 is a full-body posture mirror that allows patients to observe themselves during gait training and standing practice. It is often placed at one or both ends of parallel bars or a walking line to support posture correction and visual feedback.
GH-510 Specifications
| External Dimensions |
1,088 × 490 × 1,790(H) mm Mirror: 914 × 1,524 mm |
|---|---|
| Material | 5 mm thick polished mirror, steel frame |
| Weight | 45 kg |
| Other | Equipped with 4 casters |
GH-371 Training Stool
The GH-371 Training Stool is a four-step stool set used for sitting, standing, and transfer practice. It supports progressive training by offering multiple step heights for rehabilitation exercises.
GH-371 Specifications
| External Dimensions |
First step: approx. 516 × 404 × 100(H) mm Second step: approx. 578 × 404 × 200(H) mm Third step: approx. 640 × 404 × 300(H) mm Fourth step: approx. 702 × 404 × 400(H) mm |
|---|---|
| Material |
Top: decorative melamine laminate, antibacterial Protective rubber edge: ABS Front, back and side plates: polylaminate Core structural material: wooden |
| Weight | Approx. 22.5 kg |
| Load Bearing | 100 kg |
Made in Japan
