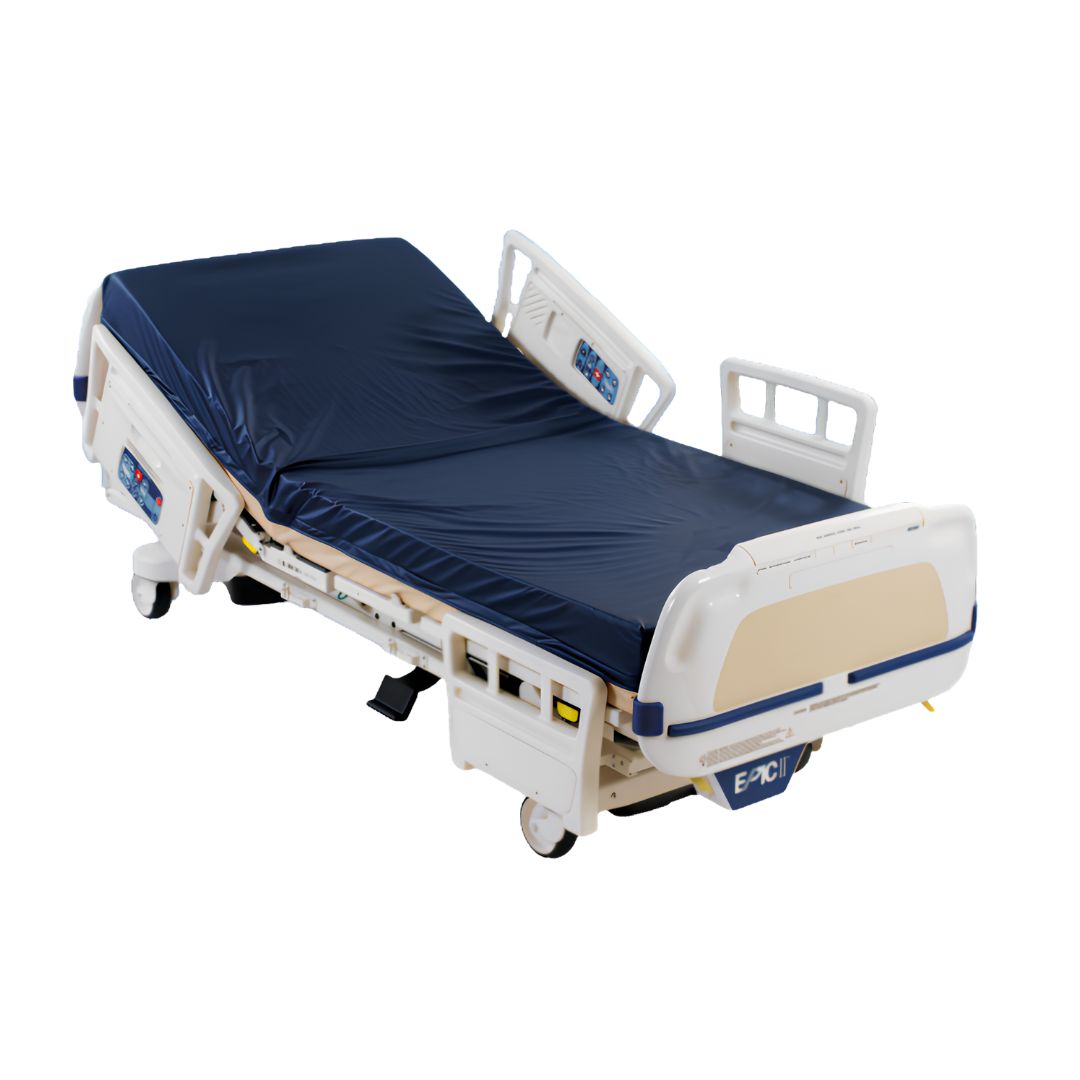

Stryker Epic II ICU Bed — Advanced Critical Care Platform
The Stryker Epic II ICU Bed is a purpose-built critical care platform designed to intuitively and efficiently facilitate clinician care for critically ill patients. As the complexity and cost of treating critical patients continues to rise, the Epic II addresses this challenge with a comprehensive feature set that supports imaging, patient positioning, caregiver ergonomics, and clinical workflow — all in one integrated platform.
Key Features
- Radiolucent from Neck Through Pelvic Region — Supports imaging without patient transfer, reducing risk and improving workflow efficiency.
- 90° Backrest for Upright Chest Imaging — Enables chest X-rays in the upright position without repositioning the patient.
- Integrated 8" (20 cm) Bed Extender — Accommodates taller patients without requiring a separate accessory.
- Scale-Isolated Drainage Bag Hooks & Head-End IV Poles — Accurate weight measurement unaffected by attached equipment.
- Four-Wheel Steel-Ring Brake System — Centrally located activation pedals for reliable, convenient braking.
- Locking-Caster Steering — Enhances maneuverability and control during patient transport.
- CPR Release for Backrest & Knee — Rapid emergency positioning with removable CPR board.
- Dual Pedestal Design — Provides unobstructed under-bed access for equipment and caregiver workflow.
- In-Rail Backrest / Knee Gatch Controls — Convenient patient and caregiver positioning controls integrated into the siderail.
- Electric Function Lock-Out Controls — Caregiver-controlled safety settings to restrict patient-initiated bed movement.
- Battery-Backed Motion Controls — Available on Epic II+ (Model 2030+) for continued operation during power interruptions.
- Four Traction Sockets & Four IV Receptacles — Scale-isolated at head end for accurate weight monitoring.
Specifications
| Specification | Epic II |
|---|---|
| Model Numbers | 2030 (115 VAC) |
| Overall Length | 91" (231 cm) |
| Overall Width — Siderails Up | 42.5" (108 cm) |
| Overall Width — Siderails Down | 40" (102 cm) |
| Weight Capacity | 500 lb (228 kg) |
| Height — High | 32.5" (83 cm) |
| Height — Low | 18" (46 cm) |
| Enhanced Fluoro Height — High | 34.5" (88 cm) |
| Enhanced Fluoro Height — Low | 19.5" (50 cm) |
| Patient Surface | 35" x 84" (89 x 213 cm) |
| Backrest Range | 0°– 90° |
| Knee Gatch Range | 0°– 90° |
| Trendelenburg / Reverse | ±12° |
| Caster Diameter — Standard | 6" (15 cm) |
| Caster Diameter — Optional | 8" (20 cm) |
Electrical Specifications
| Specification | Details |
|---|---|
| Agency Approvals | C-US UL (Model 2030) |
| Voltage | 115 VAC (2030, 2030+) / 230 VAC (2031) |
| Ampere Rating | 7A (2030, 2030+) / 4A (2031) / 5A (115V outlet option) |
| Current Leakage | <100 microamperes |
| Frequency | 60 Hz (2030, 2030+) / 50–60 Hz (2031) |
| Hospital Grade Plug | Yes |
