EJECTORBATH HW-150 / HW-110 / HW-250 / HW-210
EJECTORBATH is a warm whirlpool bath therapy system designed for upper limb and lower limb treatment. The series includes compact arm bath models and larger leg bath models, with selected AIR models offering both whirlpool bath and air bubble bath functionality in one unit.
The system supports adjustable water temperature, treatment time settings, ejector nozzle control, forced drainage, and multiple safety functions. Its design focuses on treatment comfort, easier transfers, targeted water flow, and simplified cleaning.
Available Models
EJECTORBATH AIR HW-150
Whirlpool bath for arms with air bubble bath functionality, two ejector nozzles, and advanced nozzle control features.
EJECTORBATH HW-110
Whirlpool bath for arms with forced drainage and ejector nozzle volume adjustment. Other specifications are the same as HW-150.
EJECTORBATH AIR HW-250
Whirlpool bath for legs with air bubble bath functionality, four ejector nozzles, handrail, step, and weekly timer function.
EJECTORBATH HW-210
Whirlpool bath for legs with forced drainage and ejector nozzle volume adjustment. Optional handrail and boarding step can be installed.
EJECTORBATH AIR HW-150 Specifications
| Product Name | Whirlpool Bath for Arms HW-150 |
|---|---|
| Rated Power Supply | AC 110V / 220V / 230V / 240V, 50/60 Hz |
| Power Input | 620 VA |
| External Dimensions | Approx. 760 × 545 × 885(H) mm |
| Bathtub Edge Height | Approx. 810(H) mm |
| Tub Interior Dimensions | Approx. 540 × 290 × 230(D) mm, water depth approx. 190 mm |
| Capacity | Approx. 27 L when filled to the appropriate water level |
| Weight | Approx. 90 kg |
| Ejector Nozzles | 2 nozzles |
| Water Temperature Range | 35–45°C, adjustable in 1°C increments |
| Treatment Time Setting Range | 1–40 minutes, adjustable in 1-minute increments |
| Safety Functions | Dry-heating prevention, dry operation prevention, water overheating prevention, and earth leakage protection |
| Other Functions | Ejector nozzle volume adjustment, forced drainage, ejector nozzle switching, air-bubble bath, intermittent ejector nozzle function, air-bubble volume adjustment, and weekly timer function |
EJECTORBATH HW-110 Specifications
| Product Name | Whirlpool Bath for Arms HW-110 |
|---|---|
| Weight | Approx. 82 kg |
| Other Functions | Forced drainage function and ejector nozzle volume adjustment function |
* Other specifications are the same as HW-150.
EJECTORBATH AIR HW-250 Specifications
| Product Name | Whirlpool Bath for Legs HW-250 |
|---|---|
| Rated Power Supply | AC 110V / 220V / 230V / 240V, 50/60 Hz |
| Power Input | 900 VA |
| External Dimensions | Approx. 695 × 1154 × 1015(H) mm |
| Bathtub Height | Approx. 680–710(H) mm |
| Boarding Step | Approx. 195 mm |
| Tub Interior Dimensions | Approx. 400 × 545 × 590(D) mm, effective water depth approx. 550 mm |
| Capacity | Approx. 95 L up to the optimum water level |
| Weight | Approx. 120 kg |
| Ejector Nozzles | 4 nozzles |
| Water Temperature Range | 35–45°C, adjustable in 1°C increments |
| Treatment Time Setting Range | 1–40 minutes, adjustable in 1-minute increments |
| Safety Functions | Dry-heating prevention, dry operation prevention, water overheating prevention, and earth leakage protection |
| Additional Features | Ejector nozzle volume adjustment, forced drainage, handrail, ejector nozzle switching, air-bubble bath, intermittent ejector nozzle function, air-bubble volume adjustment, weekly timer function, and step |
EJECTORBATH HW-210 Specifications
| Product Name | Whirlpool Bath for Legs HW-210 |
|---|---|
| External Dimensions | Approx. 540 × 1154 × 735(H) mm |
| Weight | Approx. 105 kg |
| Additional Features | Ejector nozzle volume adjustment, forced drainage, optional handrail, and optional step |
* Other specifications are the same as HW-250.
* A handrail and boarding step can be installed as optional accessories.
Product Lineup

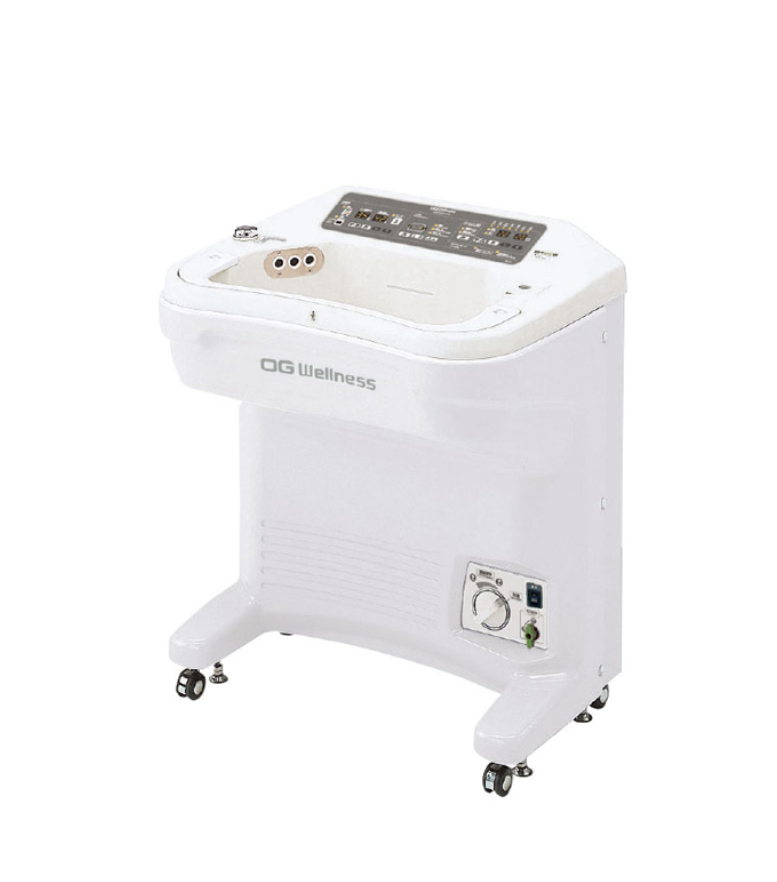

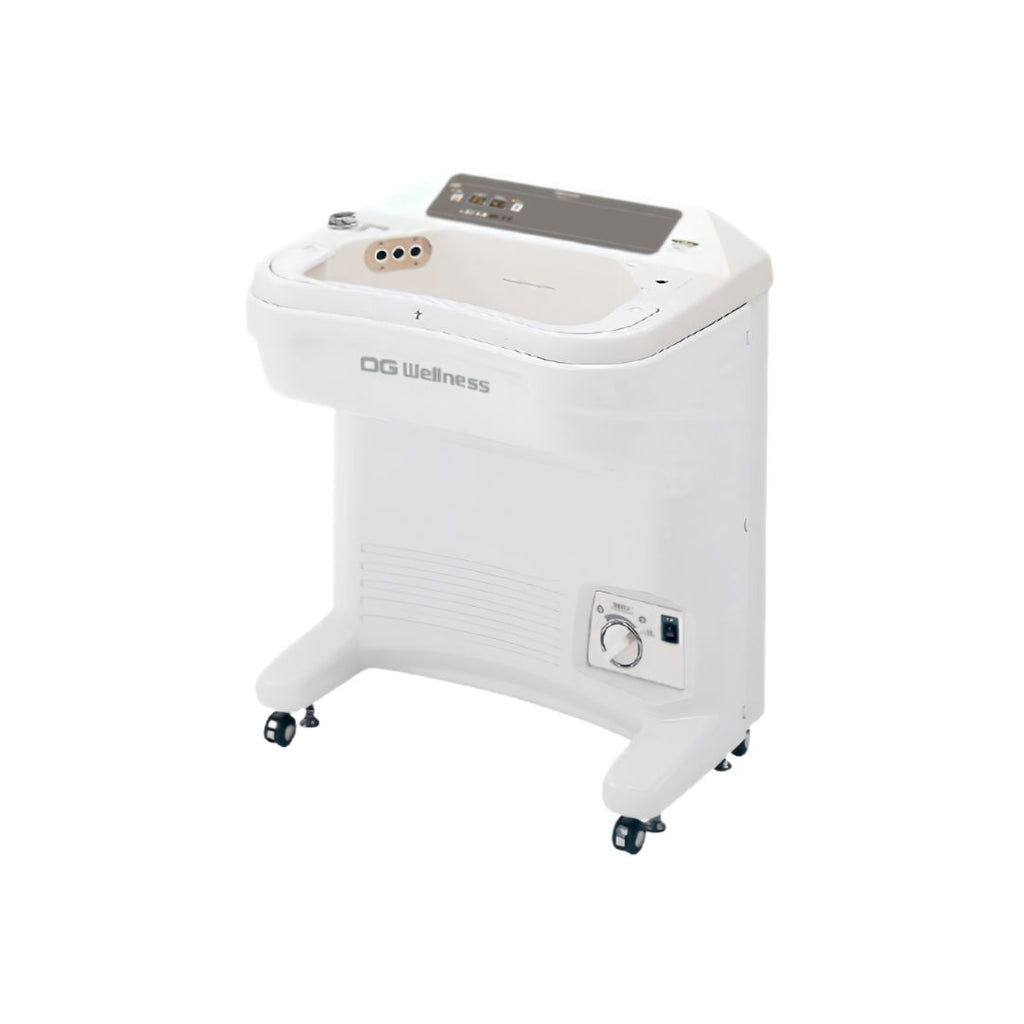

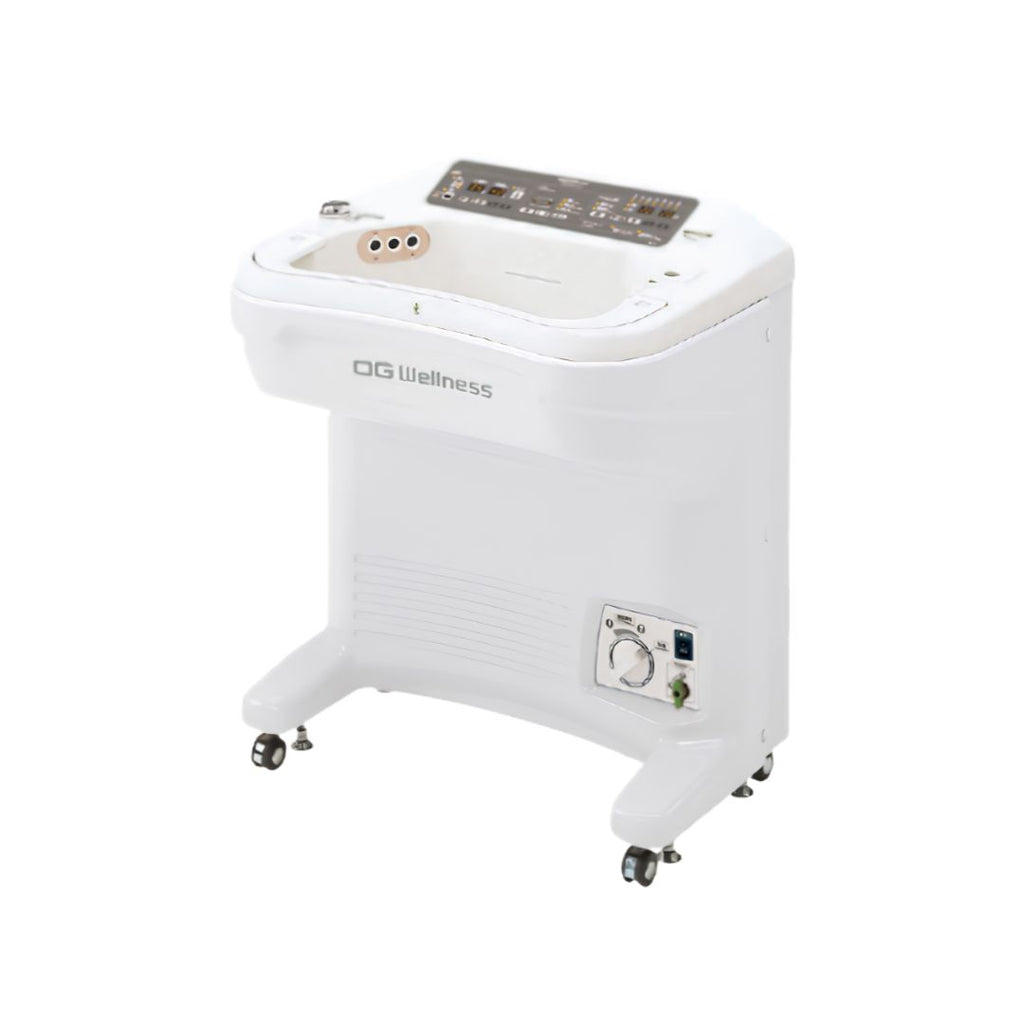

Upper Limb Warm Bath Therapy
The HW-110 and HW-150 are upper limb warm bath therapy devices designed to treat both elbows at once while supporting a comfortable patient posture.
Can treat both elbows at once while maintaining a comfortable posture.
Easy Approach from the Front and Sides
The thin front panel makes the device easier to approach from the front and sides, helping patients maintain a more comfortable posture.
Simultaneous Elbow Treatment
Ejector nozzles are installed on both sides of the bathtub, allowing both elbows to be treated at the same time.
Use the control panel to set the desired treatment method and area.
* Available on HW-150 and HW-250 only.
Whirlpool Bath and Air Bubble Bath in One Unit
The AIR models include a microbubble generation function, allowing both whirlpool and air bubble bathing treatments to be performed with one unit.
Treatment Area Configuration
Individual nozzles can be turned on and off to target specific treatment areas. Air bubble volume can also be adjusted from the main panel.

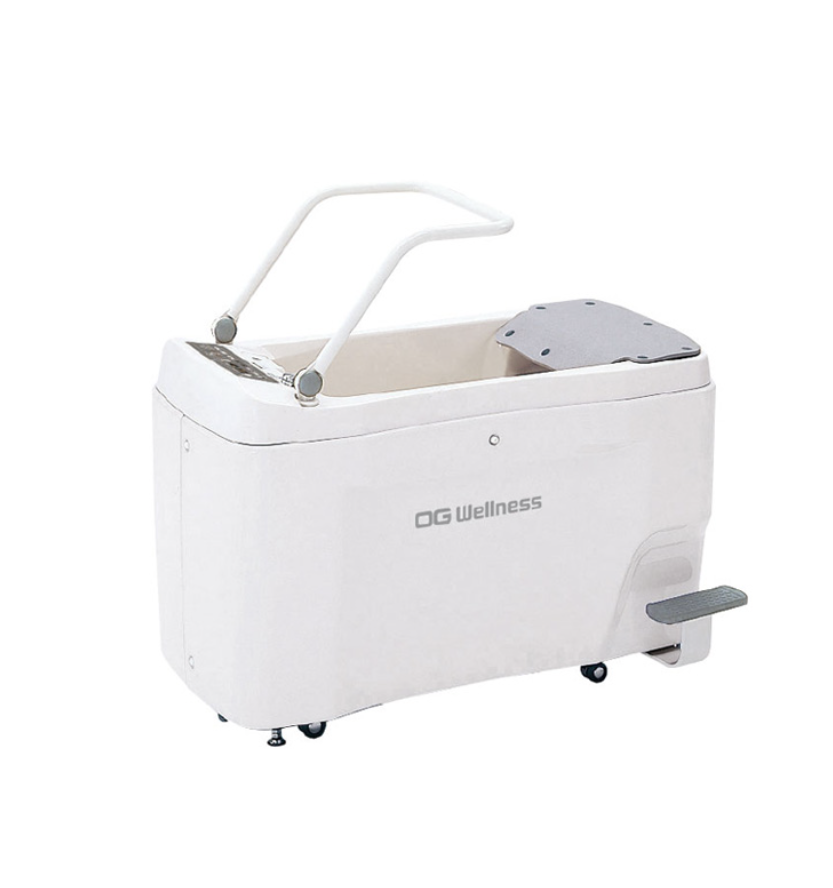

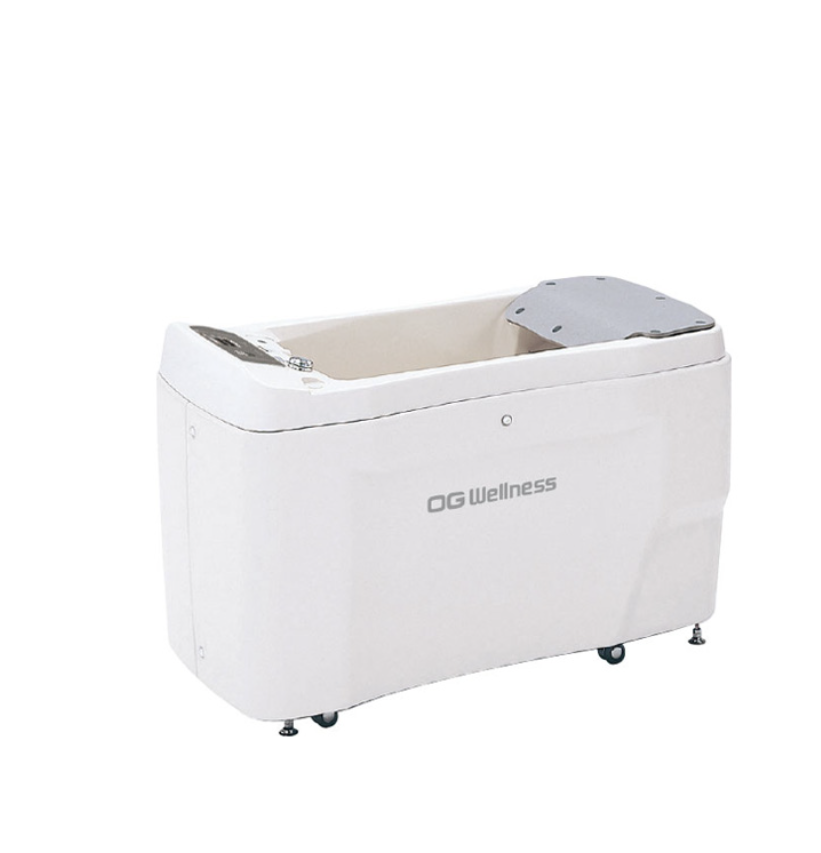

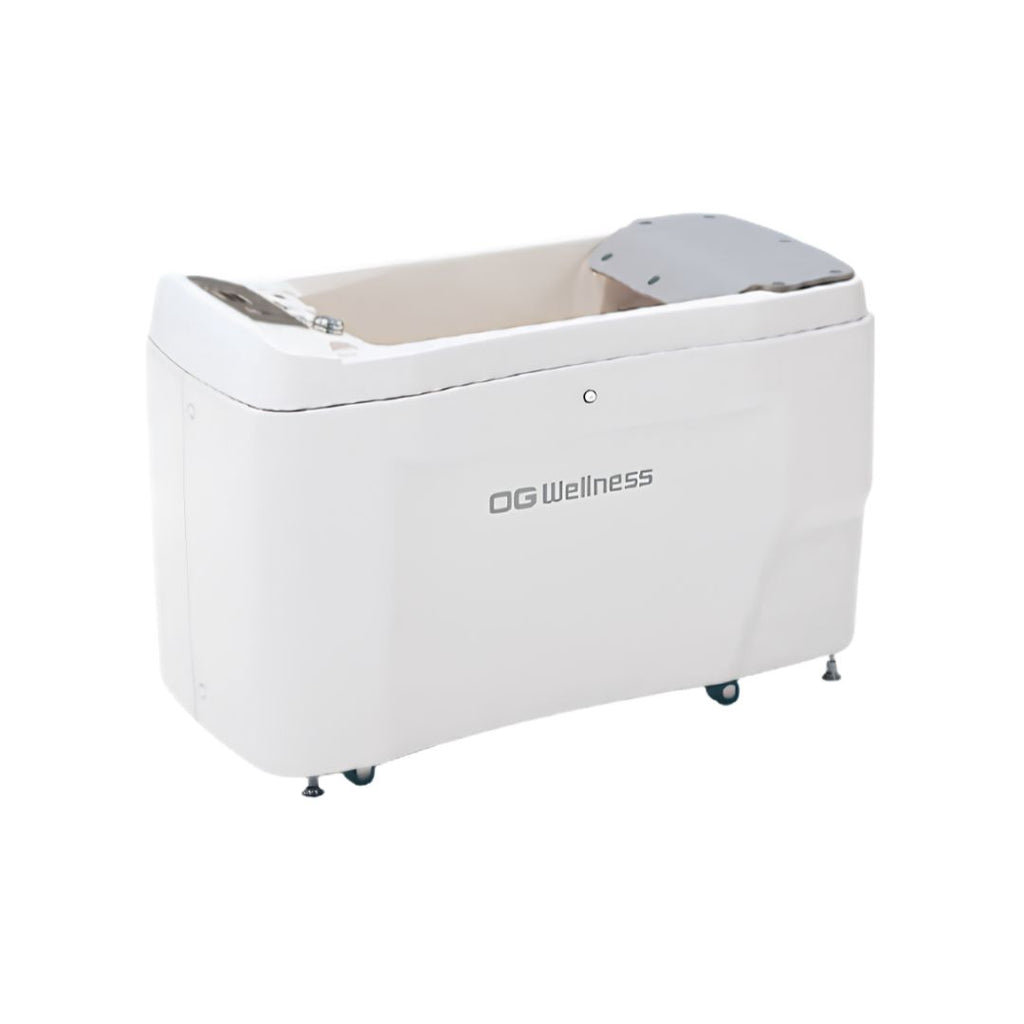

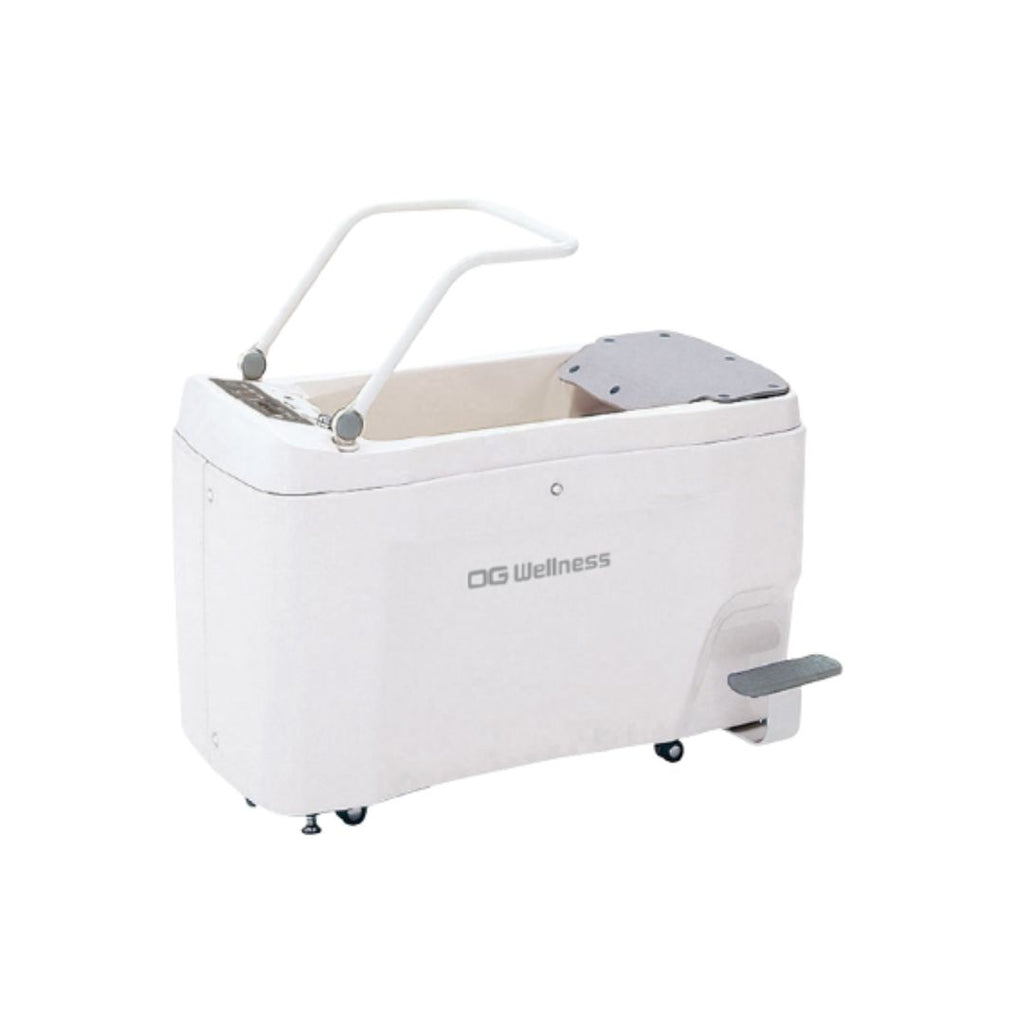

Lower Limb Warm Bath Therapy
The HW-210 and HW-250 are lower limb warm bath therapy devices. The HW-250 includes four ejector nozzles and can also be used to treat upper limbs.
Four Ejector Nozzles
Four ejector nozzles are installed at the front and back, and at the top and bottom of the bathtub, helping jet water flow cover the affected areas evenly.
Space-Saving and Water-Saving Design
The bathtub shape and size are optimized to reduce required floor space and hot water use.
* Available on HW-250 only.
Easy Transfer
A boarding step is included to help support easier transfer into the bath.
Usability, Comfort and Cleaning Support
EJECTORBATH is designed to improve treatment comfort, support broad treatment needs, and make cleaning and daily operation easier.
Adjustable Ejector Nozzles
Nozzle angle, water volume, and air volume can be adjusted according to the patient’s condition, supporting a broad range of treatment methods.
Powerful Internal Heater
The built-in heater can heat cold water to the required treatment temperature and maintain it during use, without relying only on an external hot water supply.
Convenient Drainage
The drainage function allows flow adjustment, helping eliminate the need for dedicated draining equipment. A drainage adjuster is included.
Splash Prevention
The upper rim features an inward-facing lip to reduce splashing from the water jet nozzles and help reduce wave formation.
Flat Keyboard with Clear Display
The control panel uses an easy-to-read digital display to improve visibility and usability during treatment setup and operation.
Options
Handrail
Product Number: HW210-001
Minimum Ordering Unit: 1 piece
Step
Product Number: HW210-002
Minimum Ordering Unit: 1 set
Made in Japan
