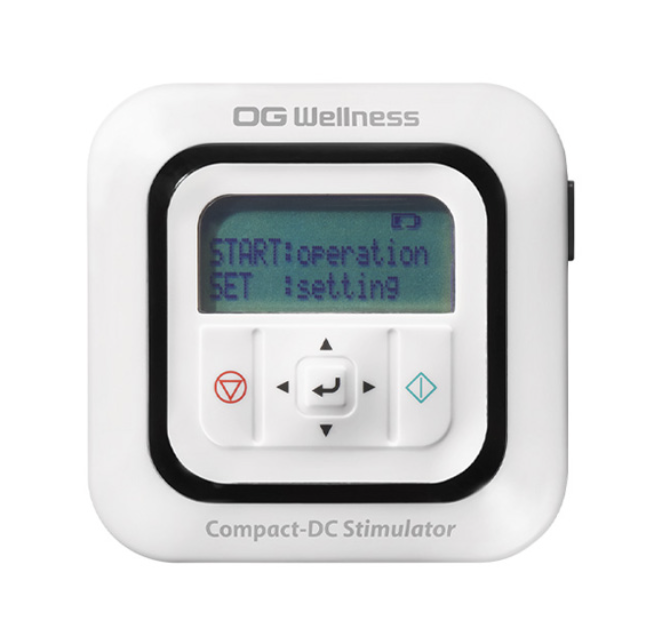

Compact-DC Stimulator GD-800
The Compact-DC Stimulator GD-800 is a compact electrical stimulator developed for use in neuromodulation. It is designed to be portable, lightweight, and comfortable to wear during rehabilitation, therapeutic exercise, occupational therapy, medical use, and research applications.
Weighing approximately 140 g, the device is smaller than a standard paperback novel and can be worn comfortably on the upper arm using the wearable belt.
Product Specifications
| Product Name | Electrical Stimulator GD-800 |
|---|---|
| Power Supply | 3.7 VDC, built-in lithium-ion rechargeable battery |
| Power Input | 5V, 500mA max. using microUSB charging cable |
| External Dimensions | Approx. 75(W) × 75(D) × 44(H) mm |
| Weight | Approx. 140 g |
| Output Waveforms | DC / Pulse |
| Maximum Output Current | 2.0mA, adjustable in 0.1mA increments |
| Stimulation Time | 1 second to 60 minutes, adjustable in 1-second increments |
| Continuous Usage Time | Approx. 3 hours when using 2.0mA output |
| Modes | DC Mode / Pulse Mode / Sham Mode |
| Safety Functions | Overcharge protection, overcurrent protection, battery communication error alert, overvoltage protection, low battery alert, and battery temperature error monitoring. |
| Memory | Stores up to 16 output patterns and 250 treatment records. |
* This product was developed based on the inventions and guidance of Dr. Satoshi Tanaka from Hamamatsu University School of Medicine and Dr. Mauricio Kugler from Nagoya Institute of Technology.
Standard Accessories
| Battery Pack (LIB) | GD800-001 | 1 piece |
|---|---|---|
| microUSB Cable | GD800-003 | 1 piece |
| Electrode Cord | GD800-004 | 1 piece |
| Data Transfer Software | GD800-002 | 1 piece |
| Electrode Fastening Belt (L) | GD800-005 | 1 piece |
| Electrode Fastening Belt (S) | GD800-006 | 1 piece |
| Wearable Belt | GD800-008 | 1 piece |
| Electrode (50 × 70 mm) | GD800-009 | 1 bag, 2 electrodes |
| Sponge (50 × 70 mm) | GD800-014 | 1 bag, 1 pink and 1 blue |
| Carrying Case (250 × 155 × 80 mm) | GD800-019 | 1 piece |
Key Features
Compact and Wearable Design
The GD-800 is compact enough to be worn comfortably on the upper arm. It can be used together with conventional rehabilitation techniques, expanding treatment possibilities in clinical and research settings.
* A standard paperback novel weighs approximately 150 g.
Wearable
Its compact size allows it to be worn on the upper arm, supporting use during conventional rehabilitation techniques.
Direct Current
The device uses a weak DC current of up to 2.0mA.
3-Hour Battery
The 2.0mA output allows approximately three hours of continuous use. The rechargeable batteries are user-replaceable.
USB Charging
The device can be charged using a general USB charger and can recharge from 0% to 100% in less than four hours.
Log Database
The device can store up to 250 treatment records. The data can be downloaded and saved on a computer.
Electrode Check Function
The device can check whether the electrode is properly attached before or during use.
Extremely Compact and Comfortable Wearable Device
The GD-800 is small, lightweight, rechargeable, and designed for easy use in rehabilitation and research environments.
Three Output Modes and Custom Pattern Settings
The Compact-DC Stimulator is a low-frequency therapy device equipped with DC Mode, Pulse Mode, and Sham Mode. It allows the output current, stimulation time, and ramp-up/ramp-down rate to be configured based on treatment requirements.
In Pulse Mode, users can also select the desired pulse width and frequency. The internal memory can store up to 16 custom output patterns and 250 treatment records.
Simple
Made in Japan
