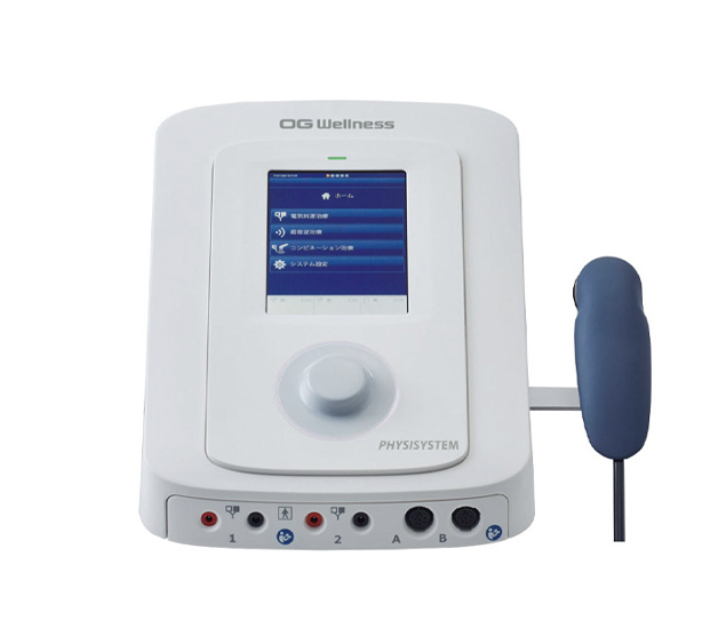

PHYSISYSTEM CT-7
PHYSISYSTEM CT-7 is a compact combination therapy device designed to provide electrotherapy, ultrasound therapy, and combination therapy in one system. It supports a wide range of treatment needs through multiple stimulation modes, ultrasound applicators, clinical protocols, and optional hands-free therapy using StatUS.
The device is designed for practical clinical use, with a clear touch panel interface, quick treatment setup, manual adjustment options, and the ability to store over 1,000 user-defined treatment protocols.
Available Packages
| CT-7S1 | Package with L-applicator |
|---|---|
| CT-7S2 | Package with L-applicator and S-applicator |
| CT-7S3 | Package with S-applicator |
| CT-7S4 | CT-7S1 + StatUS for CT-7 |
| CT-7S5 | CT-7S2 + StatUS for CT-7 |
| CT-7S6 | CT-7S3 + StatUS for CT-7 |
Main Specifications
| Product Name | Combination Therapy Equipment CT-7 |
|---|---|
| Rated Power Supply | AC 100 to 240V, 50/60 Hz |
| Power Input | 100 VA |
| External Dimensions |
Approx. 240 × 320 × 120(H) mm, main body only Approx. 240 × 305 × 182(H) mm, when using a base Approx. 240 × 305 × 216(H) mm, when using a vacuum unit |
| Weight | Approx. 2 kg, main body only / approx. 3 kg with battery |
Electrical Stimulation Therapy
| Number of Channels | 2 channels |
|---|---|
| Output Characteristics | Constant current (CC) or constant voltage (CV) |
| Maximum Output Voltage | 500V peak |
| Maximum Output Current | 140mA peak at a load of 500Ω |
| Frequency | 0–8 kHz |
| Treatment Time | 0–60 minutes |
| Modes | Interference wave, isoplanar vector, dipole vector automatic/manual, asymmetrical, asymmetrical alternating, asymmetrical burst, asymmetrical burst alternating, symmetrical, symmetrical burst, internal modulation, Russian current, high voltage twin pulse, high voltage alternating twin pulse, microcurrent, microcurrent alternating, diadynamic current, intermittent galvanic current, continuous galvanic current, induced current rectangular waves, induced current triangular waves, and induced current 2–5 currents. |
Ultrasound Therapy
| Frequency | 1MHz / 3MHz |
|---|---|
| Duty Cycle | 5–80% pulse, 100% continuous mode |
| Treatment Time | 0–30 minutes |
| Peak Output Power |
L-applicator / StatUS applicator: continuous mode 10W, pulse 15W at duty cycle 5–50%, pulse 12W at duty cycle 80%. S-applicator: continuous mode 1.6W, pulse 2.4W at duty cycle 5–50%, pulse 2W at duty cycle 80%. |
| ERA / Effective Radiation Area | L-applicator / StatUS applicator: 4cm², S-applicator: 0.6cm² |
| BNR / Beam Non-Uniformity Ratio | Max. 6:1 |
Standard Accessories
* Applicators L and S are not available for purchase separately.
Three Types of Therapy in One Compact Device
PHYSISYSTEM combines electrotherapy, ultrasound therapy, and combination therapy in one compact system, helping clinics provide flexible treatment options across different patient needs and therapy objectives.
Three-Step Quick Start
The touch panel provides fast access to treatment functions in three simple steps. The bright, scratch-resistant LCD screen is designed for clear visibility and easy operation.
Step 1
Select a treatment protocol from the menu.
Step 2
Select the condition or symptom to be treated.
Step 3
Apply the gel to the patient and begin treatment.
Protocol Storage and Manual Control
Over 1,000 User-Defined Protocols
In addition to 25 pre-programmed treatment protocols, PHYSISYSTEM can store over 1,000 user-defined treatment protocols.
Manual Mode for Treatment Adjustments
Treatment parameters such as frequency and output intensity can be adjusted based on treatment objective and body part being treated.
Battery-Operated Portability
With the optional battery, PHYSISYSTEM can be used in locations without an electrical power source, including home visits, sporting events, and other treatment environments.
Electrotherapy
PHYSISYSTEM includes 41 electrotherapy treatment protocols and 9 current waveforms to support treatment across a wide variety of conditions.
9 Different Waveforms
Supported waveforms include pre-modulated, high voltage, burst asymmetrical, 4-pole interferential current, microcurrent, galvanic current, biphasic pulsed current / TENS, diadynamic current, and faradic current.
Optional Vacuum Unit
The optional vacuum unit can be connected to deliver treatment using vacuum electrodes.
Easy-to-Read Treatment Protocols
The display presents anatomical images of the affected area along with concise treatment information for all 41 electrotherapy protocols.
Ultrasound Therapy
PHYSISYSTEM includes 25 ultrasound treatment protocols and supports both large and small applicators for suitable treatment across different body areas.
1MHz or 3MHz Frequency Selection
Use 1MHz for deeper tissue treatment or 3MHz for areas closer to the surface, helping match the treatment to the affected area.
Pulse Mode and Continuous Mode
Adjusting the duty cycle supports thermal and non-thermal treatment effects. Thermal effects can support soft tissue extensibility and pain mitigation for chronic conditions, while non-thermal effects can be used for acute conditions.
Two Applicator Head Sizes
Choose between large and small applicator heads to provide appropriate treatment for the affected area. The applicators are ergonomically designed for comfortable handling.
Clinical Protocol Display
The display presents treatment areas and treatment information in an easy-to-understand format for all 25 ultrasound clinical protocols.
Dual Stimulating Mode
The device can provide individual therapies simultaneously using two types of applicators, helping save treatment time across multiple body parts.
Combination Therapy
Combination therapy allows electrotherapy and ultrasound therapy to be delivered together. The ultrasound applicator can emit both electrical current and ultrasound simultaneously.
Simultaneous Electrical Stimulation and Ultrasound
PHYSISYSTEM includes two pre-programmed evidence-based protocols for combination therapy: electrodiagnosis of tender points in fibromyalgia and treatment of tender points.
Hands-Free Therapy with Optional StatUS
StatUS enables hands-free ultrasound therapy so the practitioner does not need to hold the applicator throughout the treatment.
Hands-Free Therapy with the StatUS Applicator
Ultrasound therapy can be performed hands-free using the StatUS applicator, an ultrasound transducer built into a suction cup, in the dedicated output mode.
With the StatUS applicator and specialized gel pads, the appropriate position is maintained for the treated body part. The exclusive output mode helps prevent hot spots.
Made in Japan
