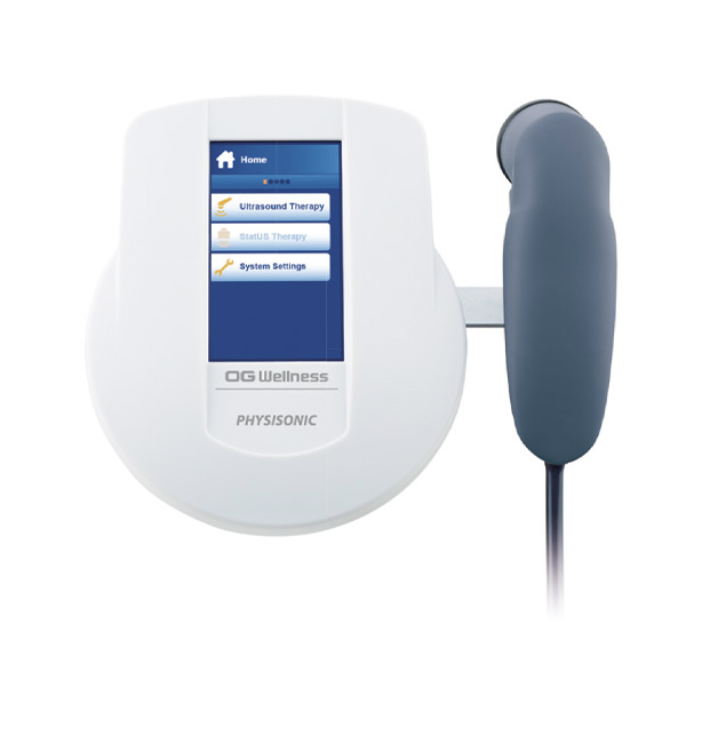

PHYSISONIC ES-7
PHYSISONIC ES-7 is a compact ultrasound therapy device designed to support treatment for various conditions and body areas. It provides both thermal and non-thermal effects to deep body tissue, helping support soft tissue extensibility, blood flow, pain relief, and micro-massage effects.
By selecting between 1MHz and 3MHz frequencies, the device can be adapted for deeper tissue treatment or more superficial treatment areas. Its compact body, bright touch panel, clinical protocols, manual mode, and optional hands-free StatUS applicator make it practical for daily physiotherapy use.
Available Packages
| ES-7S1 | Package with L-applicator |
|---|---|
| ES-7S2 | Package with L-applicator and S-applicator |
| ES-7S4 | ES-7S1 + StatUS for ES-7 |
| ES-7S5 | ES-7S2 + StatUS for ES-7 |
Product Specifications
| Product Name | Ultrasound Therapy Equipment ES-7 |
|---|---|
| Protection Classification | Class I device, BF form mounting component |
| Rated Power Supply | AC 100 to 240V, 50–60Hz |
| Power Input | 50 VA |
| External Dimensions | Approx. 160 × 185 × 86(H) mm, main body only |
| Weight | Approx. 650 g, main body only |
| Ultrasonic Frequency | 1MHz / 3MHz |
| Duty Ratio | 5–80% pulse, 100% continuous |
| Treatment Time | 0.5–30 minutes, linked with contact control |
| Maximum Output | L-applicator: continuous 8W, pulse 12W at duty ratio 5–50%, pulse 10W at duty ratio 80%. S-applicator: continuous 1.2W, pulse 1.8W at duty ratio 5–50%, pulse 1.5W at duty ratio 80%. |
| Effective Radiating Area (ERA) | L-applicator: 4cm², S-applicator: 0.6cm² |
| Beam Nonuniformity Ratio (BNR) | Max. 6 |
Compact Ultrasound Therapy for Various Conditions
PHYSISONIC uses ultrasound therapy to provide thermal and non-thermal treatment effects. It supports treatment objectives such as improving soft tissue extensibility, increasing blood flow, relieving pain, and providing a micro-massage effect.
Quick Start-Up and Easy User Interface
The device features a practical touch panel interface designed for simple and easy operation. Therapy commands can be started in three quick steps, while the bright, scratch-resistant LCD screen supports high visibility during use.
Step 1
Select a clinical protocol from the menu.
Step 2
Select the condition or symptom to be treated.
Step 3
Apply gel to the patient and begin treatment.
* StatUS uses an exclusive gel pad.
Custom Settings and Manual Control
20 User-Programmed Protocols
Up to 20 user-programmed protocols can be registered in addition to the 25 preprogrammed clinical protocols.
Manual Mode for Treatment Adjustments
Treatment parameters such as frequency and output intensity can be easily set and adjusted according to the body part being treated and the treatment objective.
Evidence-Based Treatment Protocols
PHYSISONIC includes clinical protocols and treatment support features that help practitioners quickly select suitable parameters for different treatment goals.
1MHz or 3MHz Frequency Selection
The frequency can be set to 1MHz for deeper tissue or 3MHz for areas closer to the surface, helping match treatment to the affected area.
Pulse Mode and Continuous Mode
Duty ratio adjustment allows thermal and non-thermal treatment effects. Thermal effects can support soft tissue extensibility and pain relief for chronic conditions, while non-thermal effects can be used for acute conditions.
Two Applicator Head Sizes
Large and small applicator heads allow suitable treatment for different affected areas. The applicators are ergonomically designed for comfortable handling.
25 Clinical Protocols
The device includes 25 clinical protocols for commonly treated diseases and symptoms. Treatment information, body diagrams, and anatomical drawings provide useful reference support during treatment.
* By adding StatUS, up to 75 types of clinical protocols can be accessed.
Hands-Free Therapy with Optional StatUS
StatUS enables hands-free ultrasound therapy so the practitioner does not need to hold the applicator throughout treatment.
Hands-Free Therapy with the StatUS Applicator
Ultrasound therapy can be performed hands-free using the StatUS applicator, an ultrasound transducer built into a suction cup, in a dedicated output mode.
With the StatUS applicator and specialized gel pads, the appropriate position is maintained for the body part being treated. The exclusive output mode helps prevent the occurrence of hot spots.
Optional Accessories
| Product Name | Product Number | Minimum Ordering Unit |
|---|---|---|
| StatUS for ES-7 | ES7-002 | 1 set |
| Gelpad StatUS | CT7-006 | 1 set, 48 sheets × 5 pieces |
| Fixation Ring Gelpad StatUS | CT7-007 | 1 set, 3 pieces |
Made in Japan
